teristics of the 4-Relay High/Low Trigger Module (5VDC) include:
- Four separate relays capable of independent control.
- Activated by control signals from microcontrollers such as Arduino, Raspberry Pi, or any
other compatible electronic circuit with suitable outputs.

54

- Supports activation both at high-level logic (High Level) and low-level logic (Low
Level).
- The relays typically have varying capabilities to handle different current and voltage loads
depending on the specific model.
This module is commonly used in a wide range of electronic projects, automation,
and IoT (Internet of Things) applications where remote control of electrical devices is
essential. Utilizing the 4-Relay High/Low Trigger Module (5VDC) simplifies the control
process and protects other electronic components from unwanted effects caused by
electrical loads.
Pinout diagram

Figure 5.10 Pinout diagram Module 4 Relay Trigger H/L (5VDC)
Technical specifications:
55

-

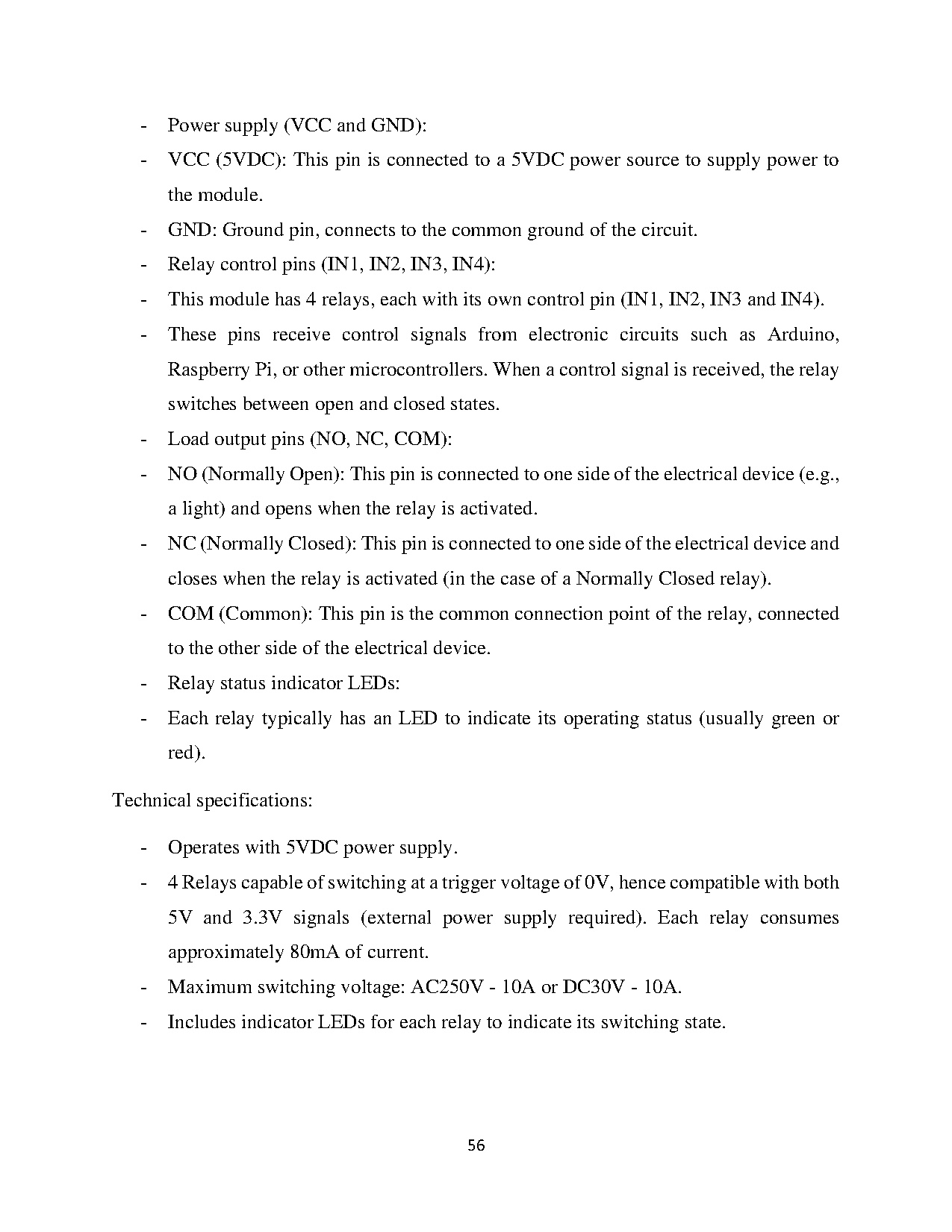

Power supply (VCC and GND):

-

VCC (5VDC): This pin is connected to a 5VDC power source to supply power to
the module.

-

GND: Ground pin, connects to the common ground of the circuit.

-

Relay control pins (IN1, IN2, IN3, IN4):

-

This module has 4 relays, each with its own control pin (IN1, IN2, IN3 and IN4).

-

These pins receive control signals from electronic circuits such as Arduino,
Raspberry Pi, or other microcontrollers. When a control signal is received, the relay
switches between open and closed states.

-

Load output pins (NO, NC, COM):

-

NO (Normally Open): This pin is connected to one side of the electrical device (e.g.,
a light) and opens when the relay is activated.

-

NC (Normally Closed): This pin is connected to one side of the electrical device and
closes when the relay is activated (in the case of a Normally Closed relay).

-

COM (Common): This pin is the common connection point of the relay, connected
to the other side of the electrical device.

-

Relay status indicator LEDs:

-

Each relay typically has an LED to indicate its operating status (usually green or
red).

Technical specifications:
-

Operates with 5VDC power supply.

-

4 Relays capable of switching at a trigger voltage of 0V, hence compatible with both
5V and 3.3V signals (external power supply required). Each relay consumes
approximately 80mA of current.

-

Maximum switching voltage: AC250V - 10A or DC30V - 10A.

-

Includes indicator LEDs for each relay to indicate its switching state.
