77.2 − 9.5) × 8 = 16.25 hour = 975 min

262

- After drilling and dredging the bottom of the borehole, it takes 45 minutes to check the
depth.
- Washing borehole: 15 min
- Reinforced cage: taking the correction time, connecting 6 reinforcement cages is
2h=120 min.
- Laying concrete pipes, concrete pouring hoppers, washing: 60min
- Time to pour concrete and remove the wall pipe: Pouring speed : 0.6m3 /min
- Diameter of pile D1000, 65m length.
hπd2 65π × 12
VBT =
=
= 51.05 m3
4
4
- Time to finish pouring 1 pile:
t=

51.05 × 1.5
= 127.625 min
0.6

- Time to remove wall pipe: 20min
- Total construction time of 1 pile.
30 + 20 + 975 + 45 + 15 + 120 + 60 + 127.625 + 20 = 1412.625 min = 23.54 h
 Choose construction option 1 pile/day/ 1 machine.
 Choose 2 machine to construction: 110/2= 55 days
10.5.2. Mass of Bentonite:
Bentonite solution, according to basic construction norms:
- The amount of Bentonite for 1m3 of solution should be 39.26 kg/m3
- During the drilling process, the solution is always full of the borehole, so the amount of
Bentonite needed D1000:
πd2
mBen = 39.26 ×
× 65 = 2004.25 kg = 2T
4

263

10.6. Number of construction workers 1 pile/shift:
- Điều khiển 2 máy khoan KH-125:

2 workers

- Máy xúc gầu nghịch Kobelco:

1 workers

- Huyndai dump 2 trucks:

2 workers

- Serving drilling process:

11 workers

- Serving mix and supply mortar:

2 workers

- Welder:

1 worker

- reinforced cage:

10 workers

- Electrician:

1 worker

Total number of workers serving on site: 30 workers/shift/pile

264

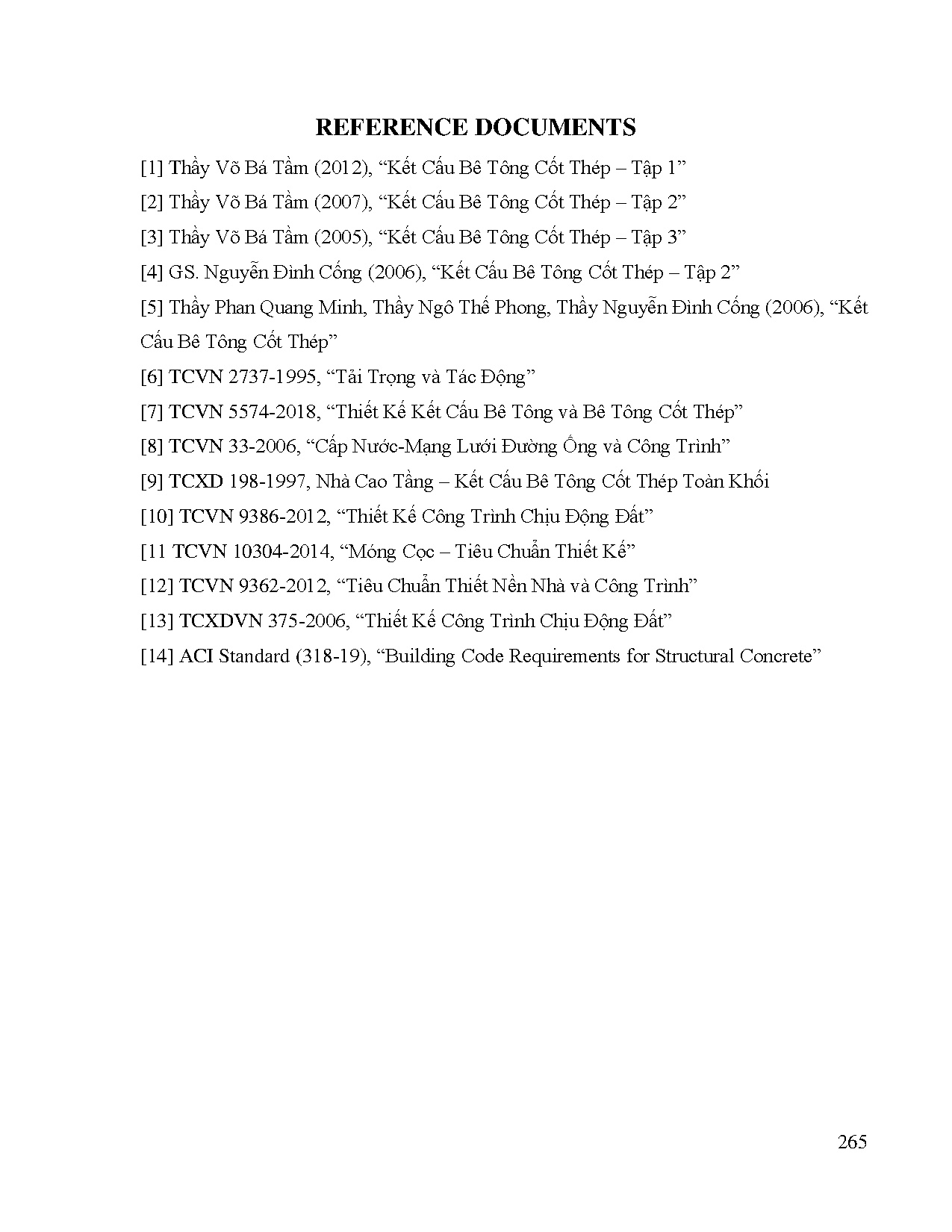

REFERENCE DOCUMENTS
