DESIGN AND DOCUEMNTAION OF AMECHANICAL SERVICE SYSTEMS -29365-2015

DESIGN AND DOCUEMNTAION OF A MECHANICAL SERVICE
SYSTEMS FOR HEALTH CARE CENTER AND AN OLYMPIC
SWIMMING POOL IN HEBRON CITY

By
Mohammad J. Shweiki

Mamoon O. Almuhtaseb
Iyad H. Alsurakji

Supervisor:
Dr.Ishaq Sider

Submitted to the College of Engineering
in partial fulfillment of the requirements for the degree of
Bachelor degree in H.V.A.C. Engineering

Palestine Polytechnic University
May 2015

Palestine Polytechnic University
(PPU)
Hebron - Palestine

DESIGN AND DOCUEMNTAION OF A MECHANICAL SERVICES SYSTEM FOR
HEALTH CARE CENTER AND AN OLYMPIC SWIMMING POOL IN HEBRON
CITY

Project Team
Mohammad J. Shweiki

Mamoon O. Almuhtaseb
Iyad H. Alsurakji

According to the project supervisor and according to the agreement of the
Testing Committee Members, this project is submitted to the Department of
Mechanical Engineering at College of Engineering and Technology in partial
fulfilments of the requirements of (B.SC) degree.

Supervisor Signature
……………………………..

Committee signature
……………………..

………………………
……………………….

Department Headmaster Signature
……….…………………….

I

Dedication

To The Souls of Our Ancestors
Who Left With Rivers Of Benevolence
To Our Parents Those Who Were Mentors, Teachers and Friends
Who Were Guidance with Their Endless Giving
To Our Teachers
Who Were Candles, Lighting Our Path to Excellence
To Our Beloved University
Where Our Hearts Will Remain
To All Those
We Promise…
The Promise of the Blood of Martyrs
The Promise of Hungry Prisoners
That We Shall Forever Be Loyal Servants
To Our Glorious Palestine

II

Acknowledgment

Our thanks go first to our advisor Dr. Ishaq Sider. His guidance and support made this
work possible. His constant encouragement, intuitive wisdom, and resolute leadership
were instrumental in completing this work.

And finally, ultimate thanks go to our families and to all lectures, engineers, doctors,
and laboratories’ supervisors. Their efforts and their nice dealing with us improved
our characters to become successful engineers in the future.

III

Abstract

‫ يتكون‬.‫يهدف هذا المشروع إلى تصميم الخدمات الميكانيكية لمركز صحي و تصميم بركة سباحة أولمبية في مدينة الخليل‬
‫ متر مربع و يشمل هذا المشروع تصميم‬٨,٣٣٣ ‫ طوابق بمساحة إجمالية مع المساحات الخارجية تقدر ب‬٣ ‫المركز من‬
‫ واعطاء تصميم كامل لبركة السباحة االوليمبية‬,‫ شبكات المياه و شبكات الصرف الصحي و نظام تكيف الهواء‬..

This project aim to design and document a mechanical service systems for health
care centre and an Olympic swimming pool in Hebr
...

...

overfeed safety timer and proportional feed control. All control
functions on front panel. This controller will monitor and control
gaseous chlorinator and PH dosing / metering pumps.
Firefighting system
Supply, install, and test the following items complete with the
necessary fixing accessories as specified and as shown in
drawings.

L.S

1

L.S

1

L.S

1

DESIGN &amp DOCUMENTATION OF AN HEALTH CARE CENTER &amp OLYMPIC SWMMING POOL
Mechanical Works
Item

Deion

Unit

Qty.

No.

3

No.

11

No.
No.
No.
No.

1
1
1

m
m
m

6
80
22

1
32-1

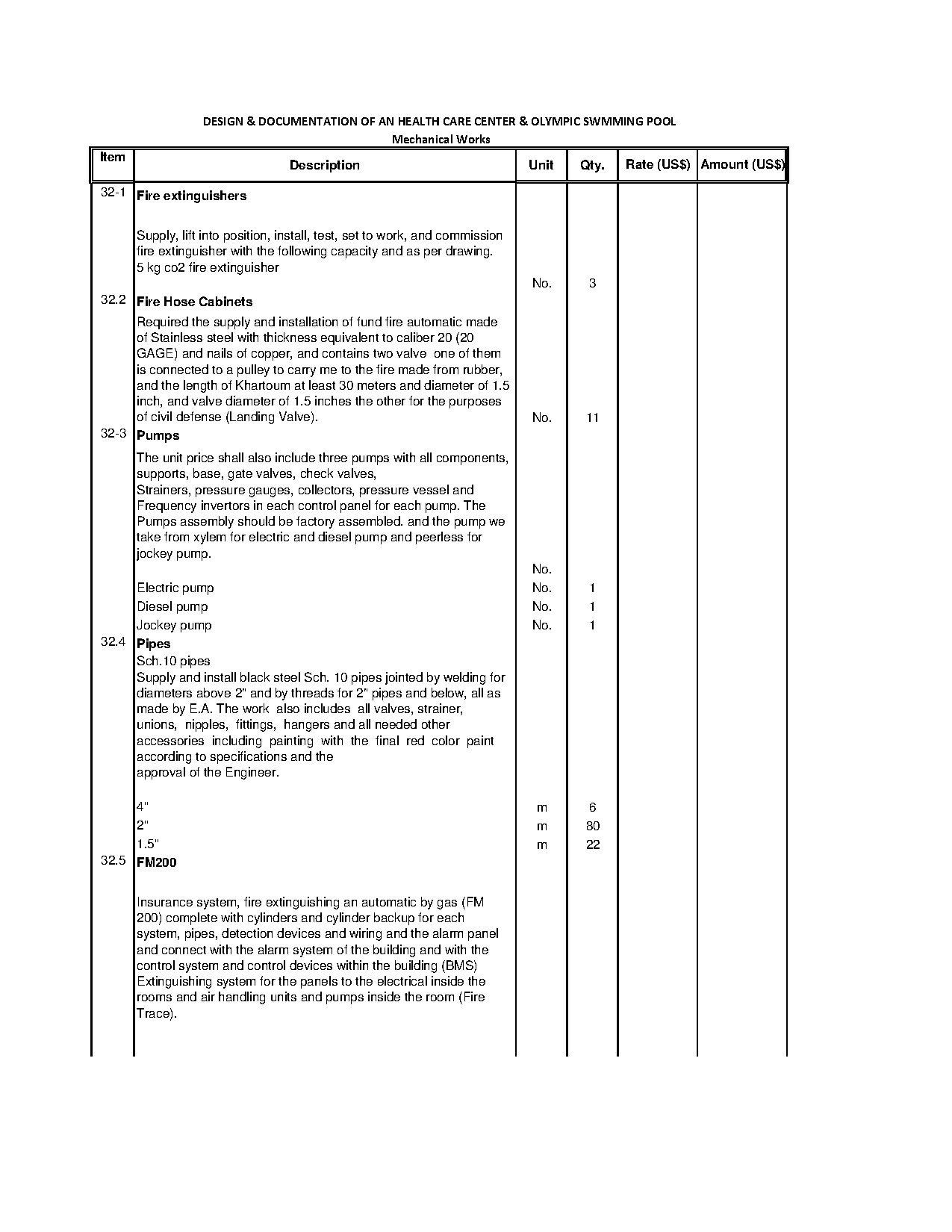

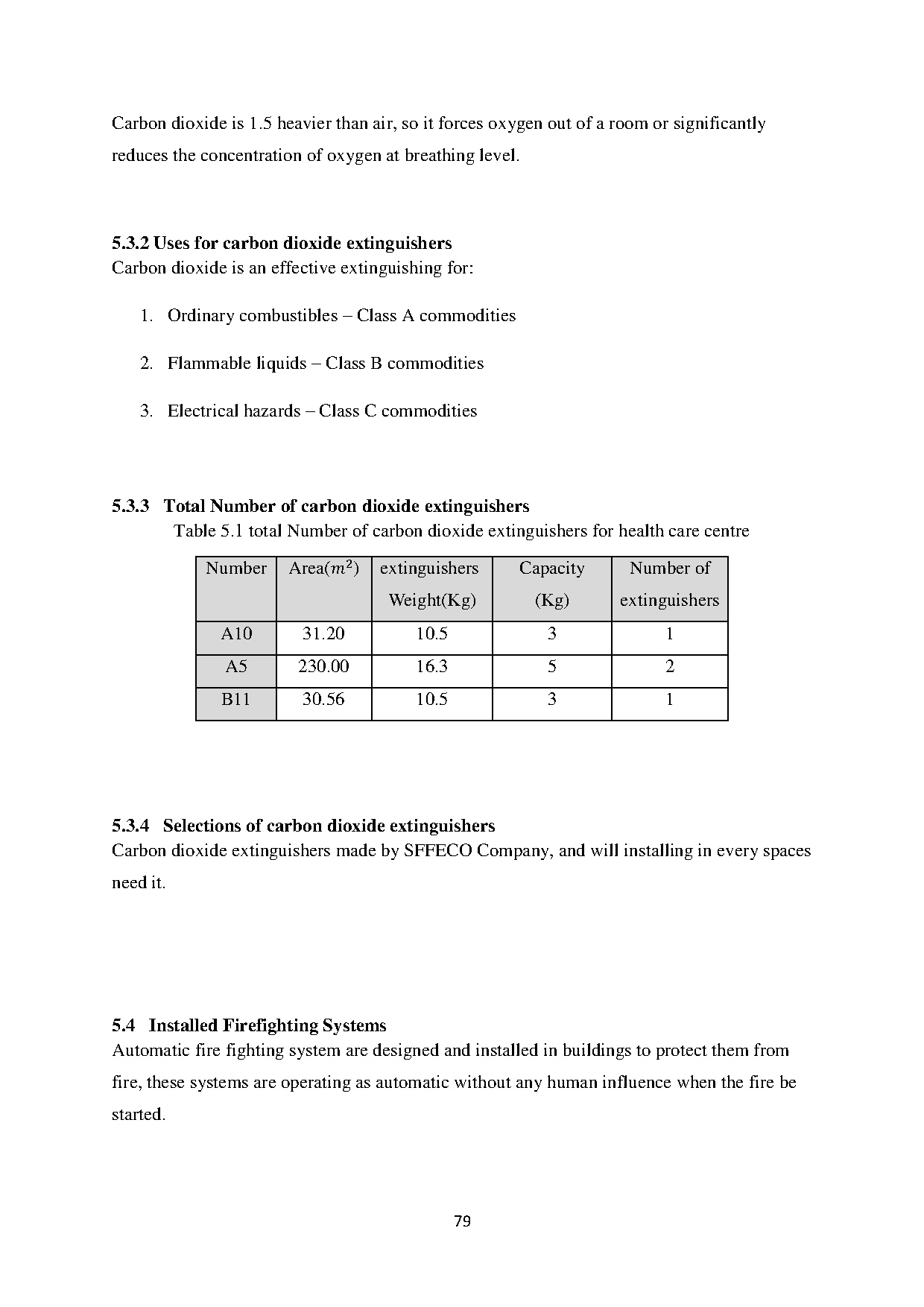

Fire extinguishers
Supply, lift into position, install, test, set to work, and commission
fire extinguisher with the following capacity and as per drawing.
5 kg co2 fire extinguisher
32.2 Fire Hose Cabinets
Required the supply and installation of fund fire automatic made
of Stainless steel with thickness equivalent to caliber 20 (20
GAGE) and nails of copper, and contains two valve one of them
is connected to a pulley to carry me to the fire made from rubber,
and the length of Khartoum at least 30 meters and diameter of 1.5
inch, and valve diameter of 1.5 inches the other for the purposes
of civil defense (Landing Valve).
32-3 Pumps
The unit price shall also include three pumps with all components,
supports, base, gate valves, check valves,
Strainers, pressure gauges, collectors, pressure vessel and
Frequency invertors in each control panel for each pump. The
Pumps assembly should be factory assembled. and the pump we
take from xylem for electric and diesel pump and peerless for
jockey pump.
Electric pump
Diesel pump
Jockey pump
32.4 Pipes
Sch.10 pipes
Supply and install black steel Sch. 10 pipes jointed by welding for
diameters above 2 and by threads for 2 pipes and below, all as
made by E.A. The work also includes all valves, strainer,
s, nipples, fittings, hangers and all needed other
accessories including painting with the final red color paint
according to specifications and the
approval of the Engineer.
4
2
1.5
32.5 FM200
Insurance system, fire extinguishing an automatic by gas (FM
200) complete with cylinders and cylinder backup for each
system, pipes, detection devices and wiring and the alarm panel
and connect with the alarm system of the building and with the
control system and control devices within the building (BMS)
Extinguishing system for the panels to the electrical inside the
rooms and air handling units and pumps inside the room (Fire
Trace).

Rate (US$) Amount (US$)
