Đồ án tốt nghiệp - Bim 4D application in construction progress management.

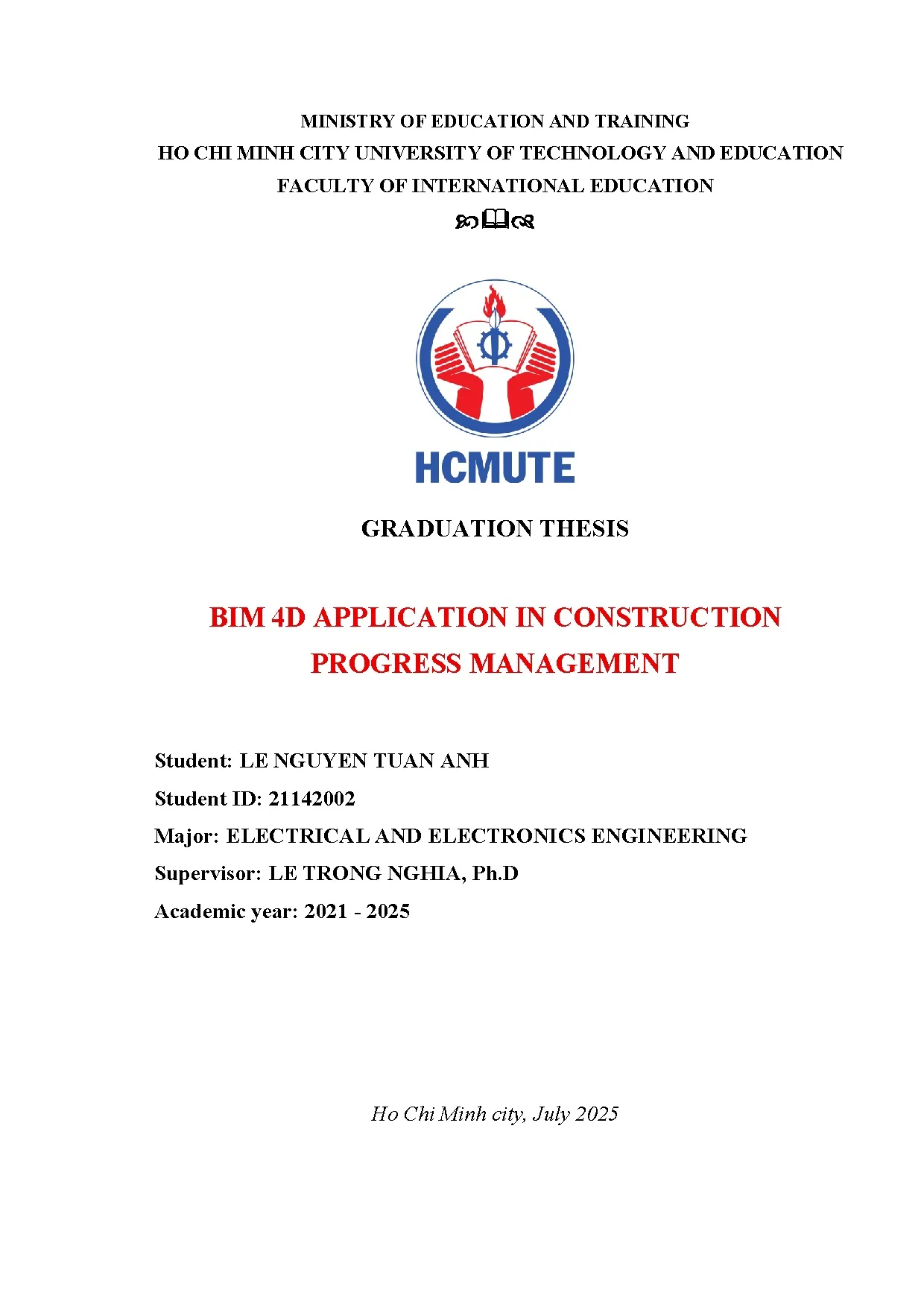

MINISTRY OF EDUCATION AND TRAINING

HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY OF INTERNATIONAL EDUCATION



GRADUATION THESIS

BIM 4D APPLICATION IN CONSTRUCTION
PROGRESS MANAGEMENT
Student: LE NGUYEN TUAN ANH
Student ID: 21142002
Major: ELECTRICAL AND ELECTRONICS ENGINEERING
Supervisor: LE TRONG NGHIA, Ph.D
Academic year: 2021 - 2025

Ho Chi Minh city, July 2025

MINISTRY OF EDUCATION AND TRAINING

HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY OF INTERNATIONAL EDUCATION



GRADUATION THESIS

BIM 4D APPLICATION IN CONSTRUCTION
PROGRESS MANAGEMENT
Student: LE NGUYEN TUAN ANH
Student ID: 21142002
Major: ELECTRICAL AND ELECTRONICS ENGINEERING
Supervisor: LE TRONG NGHIA, Ph.D
Academic year: 2021 - 2025

Ho Chi Minh city, July 2025

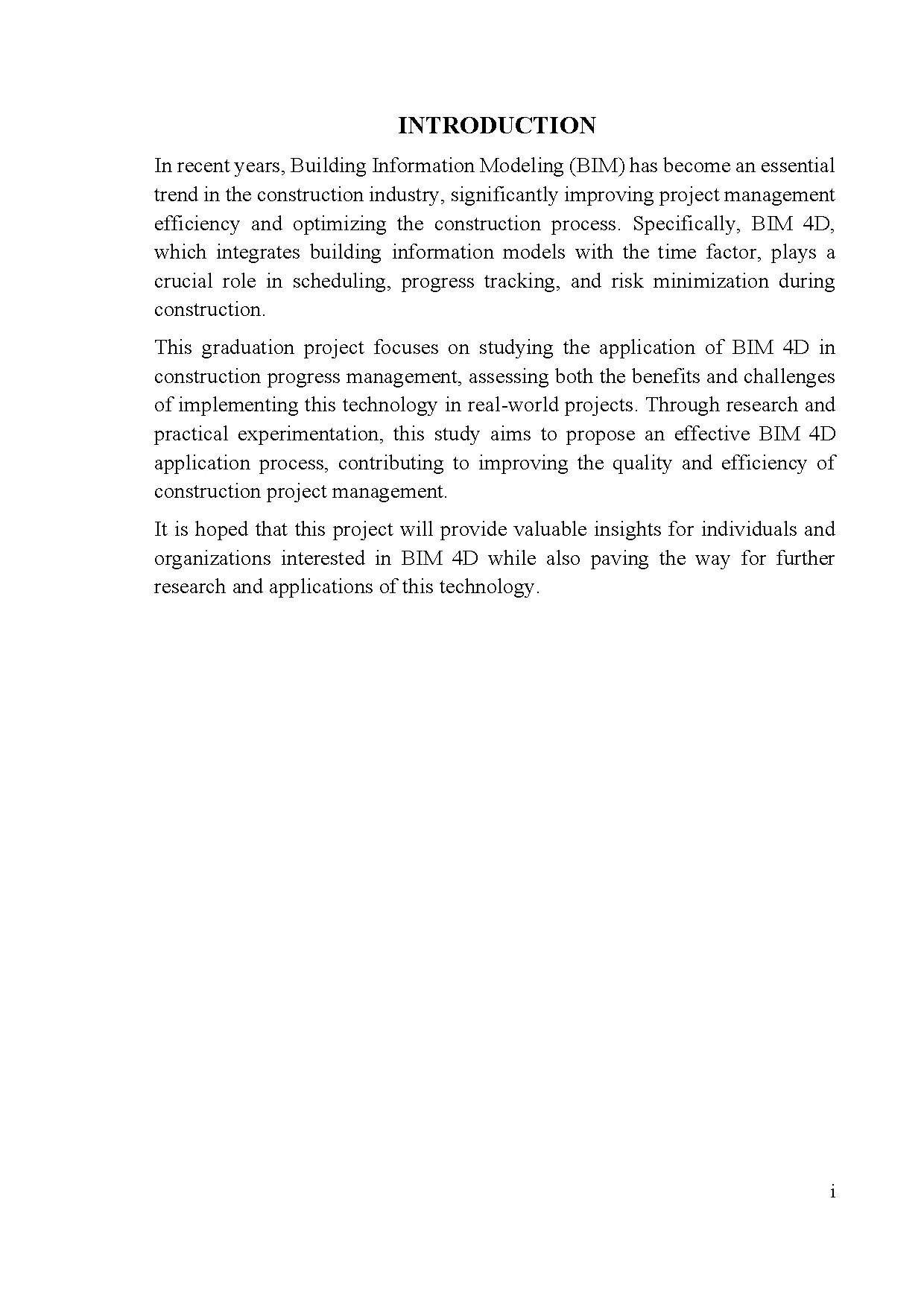

INTRODUCTION
In recent years, Building Information Modeling (BIM) has become an essential
trend in the construction industry, significantly improving project management
efficiency and optimizing the construction process. Specifically, BIM 4D,
which integrates building information models with the time factor, plays a
crucial role in scheduling, progress tracking, and risk minimization during
construction.
This graduation project focuses on studying the application of BIM 4D in
construction progress management, assessing both the benefits and challenges
of implementing this technology in real-world projects. Through research and
practical experimentation, this study aims to propose an effective BIM 4D
application process, contributing to improving the quality and efficiency of
construction project management.
It is hoped that this project will provide valuable insights for individuals and
organizations interested in BIM 4D while also paving the way for further
research and applications of this technology.

i

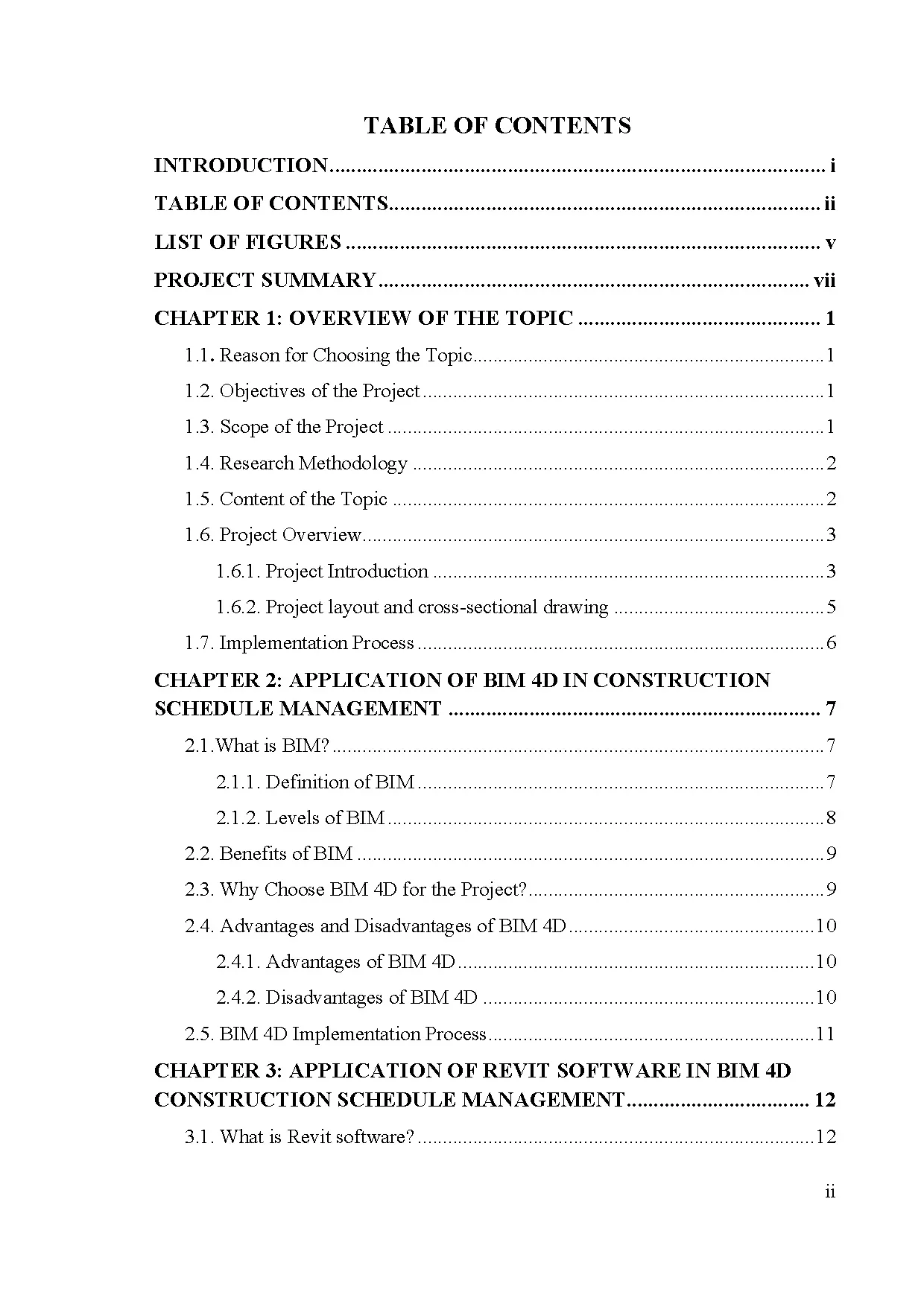

TABLE OF CONTENTS
INTRODUCTION ............................................................................................ i
TABLE OF CONTENTS................................................................................ ii
LIST OF FIGURES ........................................................................................ v
PROJECT SUMMARY ................................................................................ vii
CHAPTER 1: OVERVIEW OF THE TOPIC ............................................. 1
1.1. Reason for Choosing the Topic...................................................................... 1
1.2. Objectives of the Project ............
...

...
or (84))

3 days

4/7/2029

4/10/2029

1237

3 days
4/7 4/10

1239

Antenna 4 (SPIRE/ANTENNA Floor (84))

3 days

4/11/2029

4/13/2029

1238

3 days
4/11 4/13

1240

Antenna 5 (SPIRE/ANTENNA Floor (84))

3 days

4/14/2029

4/17/2029

1239

3 days
4/14 4/17

1241

Antenna 6 (SPIRE/ANTENNA Floor (84))

3 days

4/18/2029

4/20/2029

1240

3 days
4/18 4/20

1242

Antenna 7 (SPIRE/ANTENNA Floor (84))

4 days

4/21/2029

4/26/2029

1241

4 days
4/21 4/26

1243

Spire Top (SPIRE/ANTENNA Floor (84))

5 days

4/27/2029

5/4/2029

1242

5 days
4/27 5/4

150 days

5/5/2029

10/26/2029

1243

20 days

5/5/2029

5/28/2029

20 days
5/5
5/28
5 days
5/5 5/10

1244
1245

MEP FINALIZATION
ELECTRICAL SYSTEM

1246

Completion of MVSG panel installation

5 days

5/5/2029

5/10/2029

1247

Completion of transformer (MV) installation

5 days

5/11/2029

5/16/2029

Instructor: Le Trong Nghia, Ph.D.
Student: Le Nguyen Tuan Anh_21142002

Q4

2030
Q1

1 day
3/19 3/19

1232

1234

Q3

2 days
3/13 3/14

5/5

1246

150 days

5 days
5/11 5/16

Page 48/ 49

10/26

Q2

TRƯỜNG ĐẠI HỌC

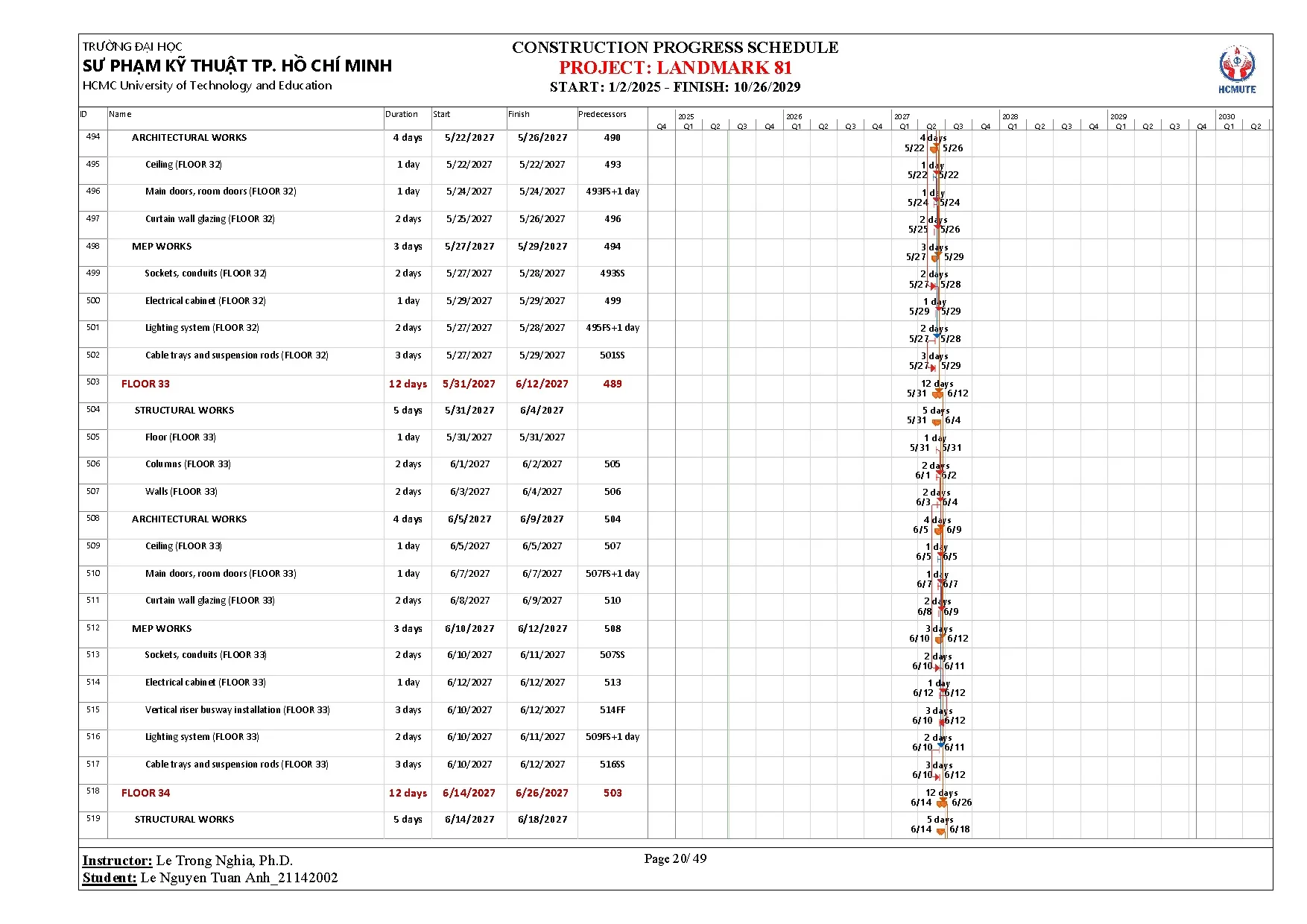

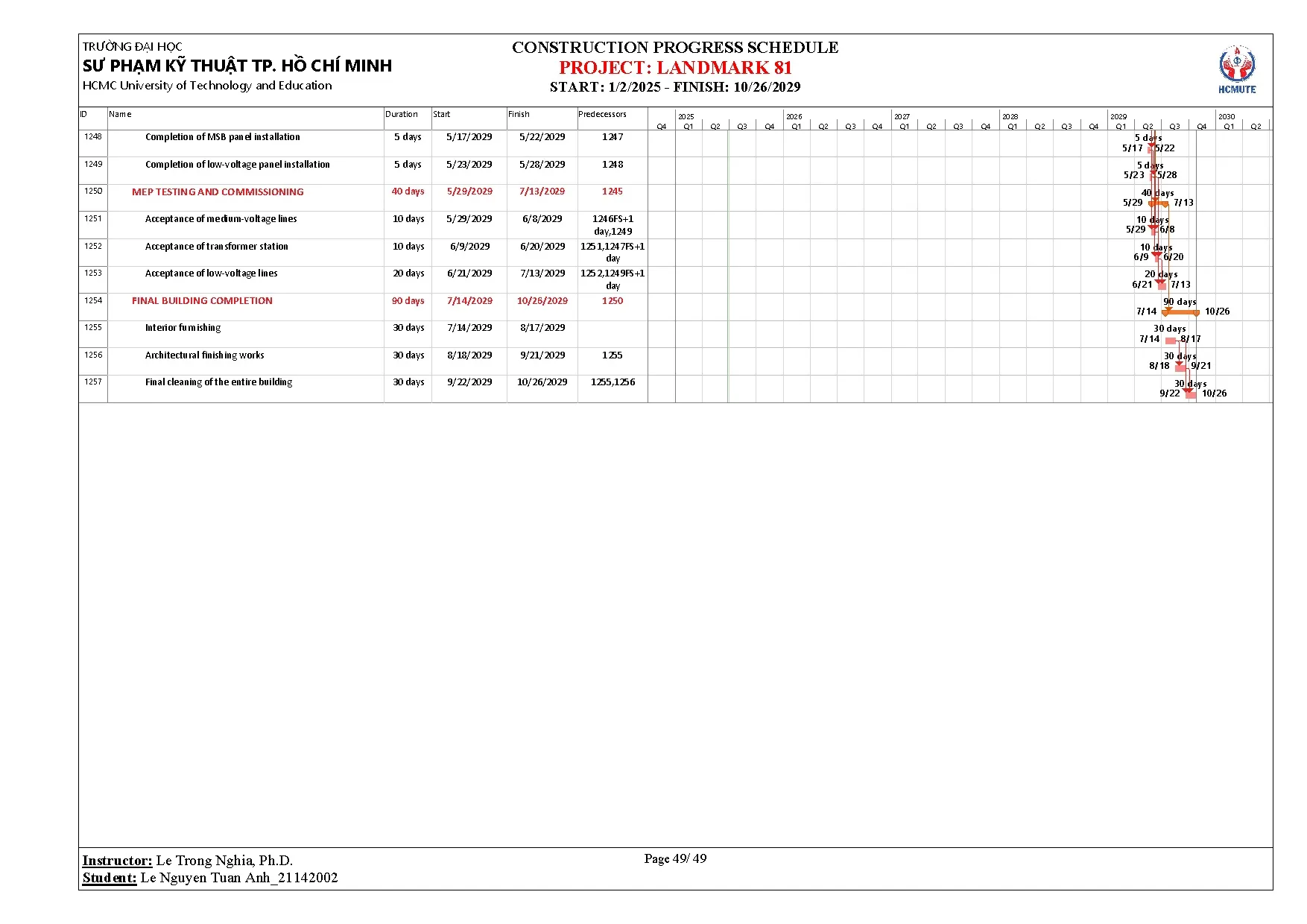

CONSTRUCTION PROGRESS SCHEDULE

SƯ PHẠM KỸ THUẬT TP. HỒ CHÍ MINH

PROJECT: LANDMARK 81

HCMC University of Technology and Education
ID

Name

START: 1/2/2025 - FINISH: 10/26/2029
Duration

Start

Finish

Predecessors
Q4

2025
Q1

Q2

Q3

Q4

2026
Q1

Q2

Q3

Q4

2027
Q1

Q2

Q3

Q4

2028
Q1

Q2

Q3

Q4

2029
Q1

Q2

Q3

1248

Completion of MSB panel installation

5 days

5/17/2029

5/22/2029

1247

1249

Completion of low-voltage panel installation

5 days

5/23/2029

5/28/2029

1248

5 days
5/23 5/28
40 days
5/29
7/13

1250

MEP TESTING AND COMMISSIONING

40 days

5/29/2029

7/13/2029

1245

1251

Acceptance of medium-voltage lines

10 days

5/29/2029

6/8/2029

1252

Acceptance of transformer station

10 days

6/9/2029

6/20/2029

1253

Acceptance of low-voltage lines

20 days

6/21/2029

7/13/2029

1254

FINAL BUILDING COMPLETION

90 days

7/14/2029

10/26/2029

1246FS+1
day,1249
1251,1247FS+1
day
1252,1249FS+1
day
1250

1255

Interior furnishing

30 days

7/14/2029

8/17/2029

1256

Architectural finishing works

30 days

8/18/2029

9/21/2029

1255

1257

Final cleaning of the entire building

30 days

9/22/2029

10/26/2029

1255,1256

Instructor: Le Trong Nghia, Ph.D.
Student: Le Nguyen Tuan Anh_21142002

Q4

2030
Q1

5 days
5/17 5/22

10 days
5/29
6/8
10 days
6/9
6/20
20 days
6/21
7/13
7/14

90 days

10/26

30 days
7/14
8/17
30 days
8/18
9/21
30 days
9/22
10/26

Page 49/ 49
