HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY FOR HIGH QUALITY TRAINING

--

GRADUATION THESIS

IOT-BASED AUTOMATIC MONITORING AND
CONTROL SYSTEM FOR AGRICULTURE
DAO DUY TUNG
Student ID: 17141034
VO BANG TRANH
Student ID: 17141146
Major: ELECTRONIC AND COMMUNICATION
ENGINEERING TECHNOLOGY
Advisor: DO DUY TAN, M.Eng.

Ho Chi Minh City, August 2022

HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY FOR HIGH QUALITY TRAINING

--

GRADUATION THESIS

IOT-BASED AUTOMATIC MONITORING AND
CONTROL SYSTEM FOR AGRICULTURE
DAO DUY TUNG
Student ID: 17141034
VO BANG TRANH
Student ID: 17141146
Major: ELECTRONIC AND COMMUNICATION
ENGINEERING TECHNOLOGY
Advisor: DO DUY TAN, M.Eng.

Ho Chi Minh City, August 2022

ii

THE SOCIALIST REPUBLIC OF VIETNAM
Independence – Freedom– Happiness
-Ho Chi Minh City, July 27th, 2022

ADVISOR’S EVALUATION SHEET
Student name: Dao Duy Tung

Student ID: 17141034

Student name: Vo Bang Tranh

Student ID: 17141146

Major: Electronics and Communication Engineering Technology
Project title: IOT-BASED AUTOMATIC MONITORING AND CONTROL
SYSTEM FOR AGRICULTURE
Advisor: M.Eng. Do Duy Tan
EVALUATION
1. Content of the project:
- The team implements the content that meets the requirements set out initially
2. Strengths:
- The group made the graduation thesis on schedule and reported on the complete
process.
- The content of the report presents a clear layout.
3. Weaknesses:
-The topic of designing a garden care system using IoT technology has been
implemented by many groups before
show before
- It is recommended to supplement the garden monitoring table in a certain period of
time to evaluate the effectiveness
- Some images are not good quality.
4. Approval for oral defense? (Approved or denied): APPROVAL
5. Overall evaluation: (Excellent, Good, Fair, Poor):
6. Mark: 8.2 (in words: Eight point two )
Ho Chi Minh City,
ADVISOR
(Sign with full name)

iii

HCMC University of Technology and
Education
Faculty for High Quality training

Socialist Republic of Vietnam
Independence - Liberty – Happiness
Ho Chi Minh City, July 27th, 2022

PROJECT ASSIGNMENT
Name of Members: Dao Duy Tung

Student ID: 17141034

Vo Bang Tranh

Student ID: 17141146

Training system: Regular university
Major: Electronics and communication engineering technology
Class: 17141CLA2 17141CLS
I.

NAME OF PROJECT: IOT-BASED AUTOMATIC MONITORING AND
CONTROL SYSTEM FOR AGRICULTURE

II.

ASSIGNMENT

1. C
...

...

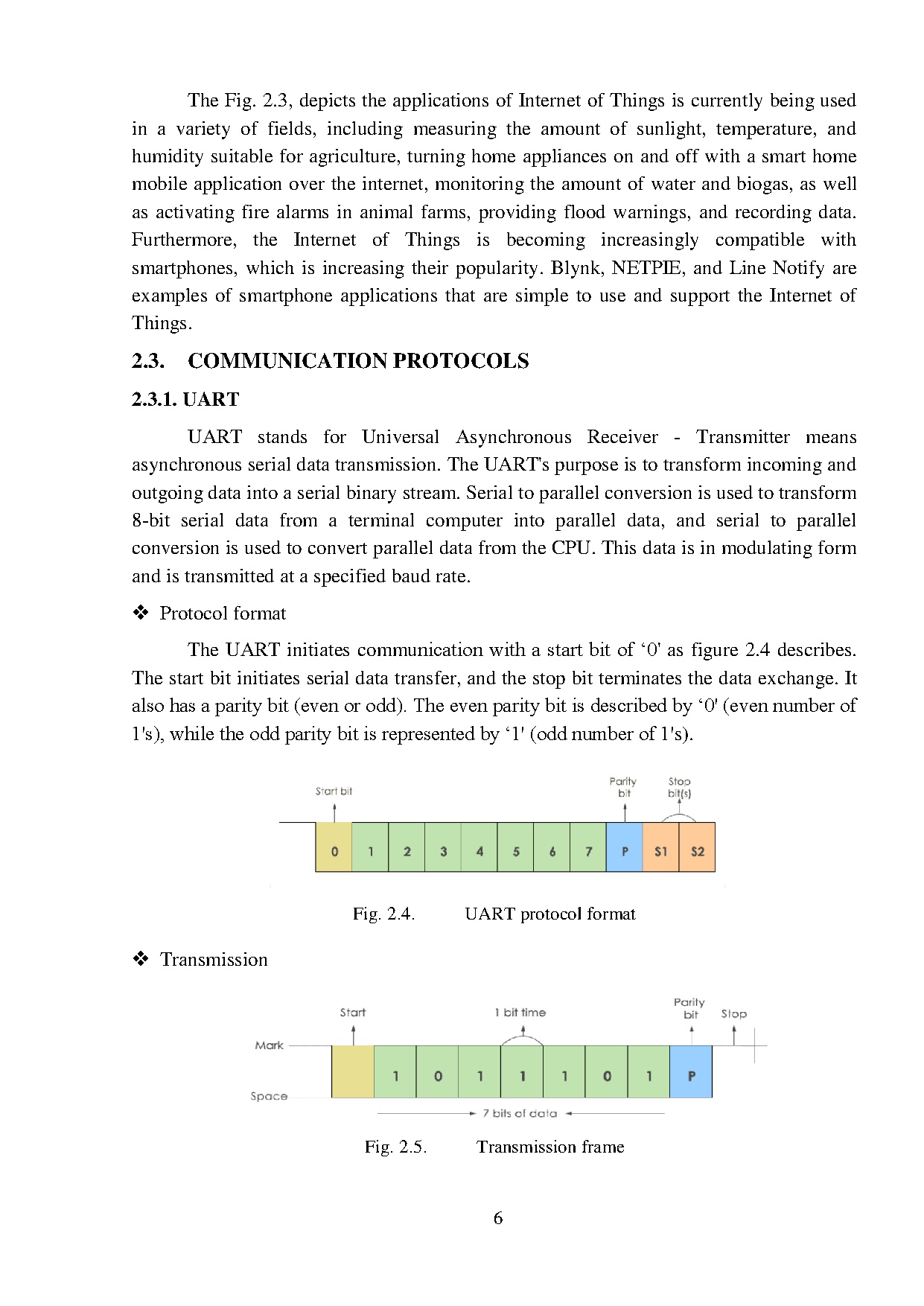

AS ZERO FOR NOW
// SET ACCELERATION OF STEPPER
INITIAL_HOMING = -1
WHILE (!DIGITALREAD(CTHT1)) { // MAKE THE STEPPER MOVE CW UNTIL THE SWITCH IS
DEACTIVATED
STEPPER1.MOVETO(INITIAL_HOMING)
STEPPER1.RUN()
INITIAL_HOMING
(1)
BLYNK.RUN()
}
STEPPER1.SETCURRENTPOSITION(0)
SERIAL.PRINTLN(HOMING 1 COMPLETED)
SERIAL.PRINTLN()
INITIAL_HOMING = 1
WHILE (DIGITALREAD(CTHT2)) { // MAKE THE STEPPER MOVE CCW UNTIL THE SWITCH IS
ACTIVATED
STEPPER2.MOVETO(INITIAL_HOMING) // SET THE POSITION TO MOVE TO
INITIAL_HOMING++ // DECREASE BY 1 FOR NEXT MOVE IF NEEDED
STEPPER2.RUN() // START MOVING THE STEPPER
(1)
BLYNK.RUN()
}
STEPPER2.SETCURRENTPOSITION(0) // SET THE CURRENT POSITION AS ZERO FOR NOW
// SET ACCELERATION OF STEPPER
INITIAL_HOMING = -1
WHILE (!DIGITALREAD(CTHT2)) { // MAKE THE STEPPER MOVE CW UNTIL THE SWITCH IS
DEACTIVATED
STEPPER2.MOVETO(INITIAL_HOMING)
STEPPER2.RUN()
INITIAL_HOMING
(1)
BLYNK.RUN()
}
STEPPER2.SETCURRENTPOSITION(0)
SERIAL.PRINTLN(HOMING 2 COMPLETED)
SERIAL.PRINTLN()
}
VOID GIEO_HAT() {
SERVO.WRITEMICROSECONDS(2000) // QUAY NGHỊCH
(200)
SERVO.WRITEMICROSECONDS(1500) // DỪNG
(50)
SERVO.WRITEMICROSECONDS(1000) //QUAY THUẬN
(TIMEXOAY)
SERVO.WRITEMICROSECONDS(1500) // DỪNG
}
VOID BAT_BOM() {

71

ANALOGWRITE(PIN_BOM, 255)
(TIMEBOM)
ANALOGWRITE(PIN_BOM, 0)
}Code of AlphaBot2

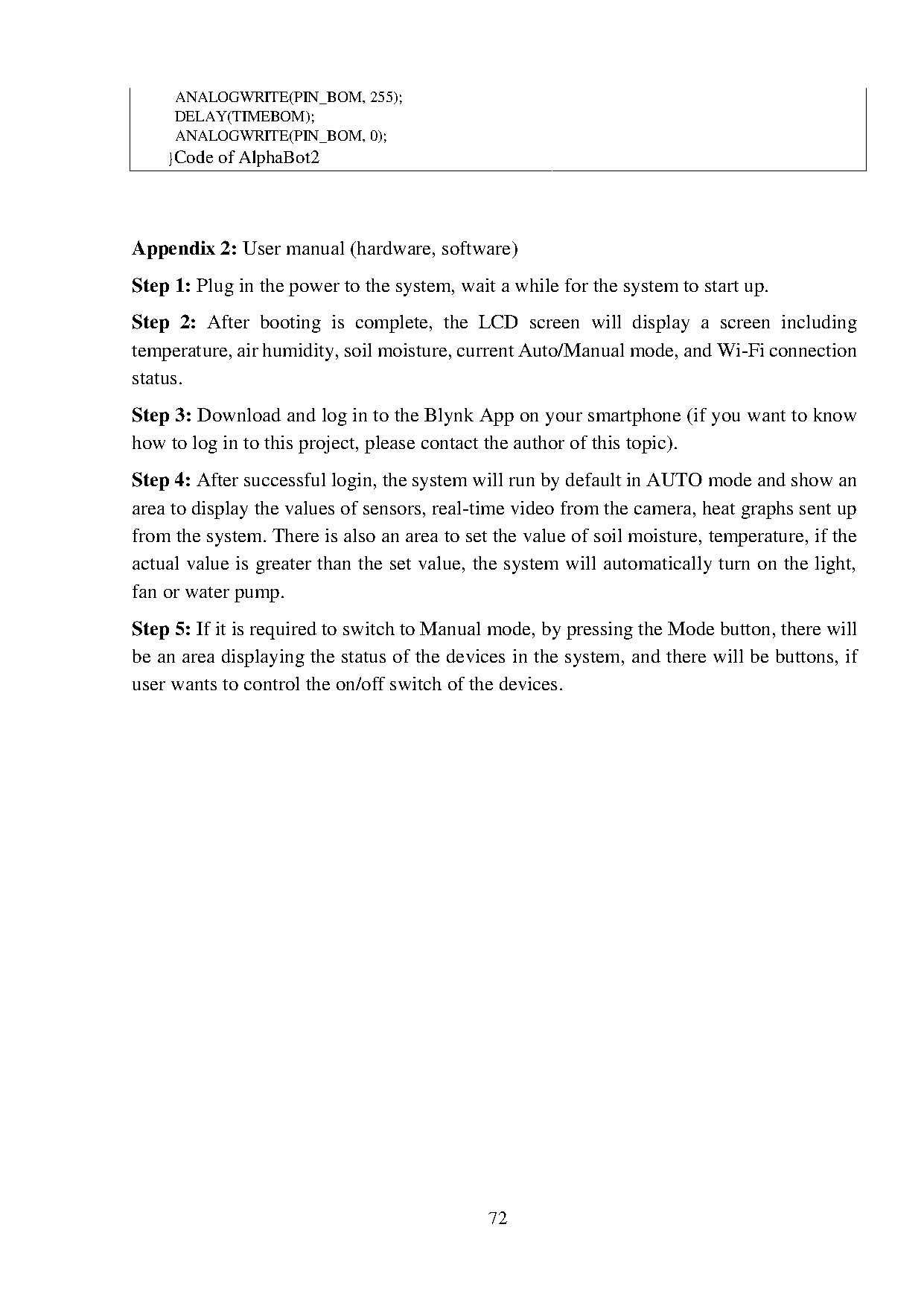

Appendix 2: User manual (hardware, software)
Step 1: Plug in the power to the system, wait a while for the system to start up.
Step 2: After booting is complete, the LCD screen will display a screen including
temperature, air humidity, soil moisture, current Auto/Manual mode, and Wi-Fi connection
status.
Step 3: Download and log in to the Blynk App on your smartphone (if you want to know
how to log in to this project, please contact the author of this topic).
Step 4: After successful login, the system will run by default in AUTO mode and show an
area to display the values of sensors, real-time video from the camera, heat graphs sent up
from the system. There is also an area to set the value of soil moisture, temperature, if the
actual value is greater than the set value, the system will automatically turn on the light,
fan or water pump.
Step 5: If it is required to switch to Manual mode, by pressing the Mode button, there will
be an area displaying the status of the devices in the system, and there will be buttons, if
user wants to control the on/off switch of the devices.

72
