Đồ án tốt nghiệp - Design and construction of fountain system

HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY FOR HIGH QUALITY TRAINING

GRADUATION PROJECT

DESIGN AND CONSTRUCTION OF FOUNTAIN SYSTEM

Advisor:

M.E. NGUYEN TAN DOI

Student name:

VO ANH KHOA

ID: 18142032

Student name:

LE HOANG HOP

ID: 18142024

Major: ELECTRICAL AND ELECTRONIC ENGINEERING TECHNOLOGY

Ho Chi Minh City, December 2022

THE SOCIALIST REPUBLIC OF VIETNAM

Independence – Freedom– Happiness
-Ho Chi Minh City, December 28, 2022

GRADUATION PROJECT ASSIGNMENT
Student name: VO ANH KHOA

Student ID: 18142032

Class: 18142CLA3

Phone number: 0938513252
Major: ELECTRICAL AND ELECTRONIC ENGINEERING TECHNOLOGY
Student name: LE HOANG HOP Student ID: 18142024

Class: 18142CLA2

Phone number: 0965684440
Major: ELECTRICAL AND ELECTRONIC ENGINEERING TECHNOLOGY
Advisor: M.E. NGUYEN TAN DOI

Phone number: 0983222159

Date of assignment: 26/09/2022

Date of submission: 28/12/2022

1. Project title: DESIGN AND CONSTRUCTION OF FOUNTAIN SYSTEM

2. Initial materials provided by the advisor
-

Survey the reality fountain
Learn the principle and setting variable frequency drive
Learn Modbus communication

3. Content of the project:
-

Design fountain model
Construction system
Programing PLC for controlling system
Communication between PLC and VFD
Design HMI interface

4. Final product:
-

Completely simulating reality fountain system
System report book
CHAIR OF THE PROGRAM

ADVISOR

(Sign with full name)

(Sign with full name)

THE SOCIALIST REPUBLIC OF VIETNAM

Independence – Freedom– Happiness
-Ho Chi Minh City, December 28, 2022

ADVISOR’S EVALUATION SHEET
Student name: VO ANH KHOA

Student ID: 18142032

Student name: LE HOANG HOP

Student ID: 18142032

Major: ELECTRICAL AND ELECTRONIC ENGINEERING TECHNOLOGY
Project title: DESIGN AND CONSTRUCTION OF FOUNTAIN SYSTEM
Advisor: M.E. NGUYEN TAN DOI
EVALUATION
1. Content of the project:
.................................................................................................................................................
.................................................................................................................................................
.................................................................................................................................................
2. Strengths:
..............................................................................................................................
...

...
y, so the effects are still not perfect.
The users can also operate on the HMI screen. Besides, the operator can observe the
working status of the device, the operating modes.

Figure 5.3.7

Figure 5.3.8

61 | P a g e

Figure 5.3.9

Figure 5.3.10

Personal opinion: The HMI interface has a neat and simple design that makes it easy
for users to control the programmed effects, monitor whether the devices are working
or not. However, there are still limitations on the monitoring parameters such as
voltage, frequency.

62 | P a g e

CHAPTER VI. CONCLUSION AND RECOMMENDATIONS
6.1. Conclusion
In conclusion, after the process of implementing the model, our team has achieved the
initial proposed criteria:
-

The supporting frame withstands all the force from the water supply and drainage
system and the electrical equipment installed on the electrical panel

-

The system runs effects with continuously changing water columns.

-

The signal transmission speed between PLC and VFDs achieves accuracy and
continuity.

-

Highly entertaining

-

Easy for users to access and operate.

However, there are still drawbacks:
-

Small substances can get stuck in the solenoid valve during operation, making
this device unstable.

-

The water column is sometimes uneven due to the influence of the air in the
pipelines when opening and closing the valve.

6.2. Development
-

Can develop the system by replacing the solenoid valve technology with linear
valve in order to limit the number of inverters and pumps.

-

Installing some more nozzles to more different effects to increase the
aesthetics of the system

-

Using remote monitoring and control software such as Web Server to be able to
manage the operation of the system without approaching the system.

63 | P a g e

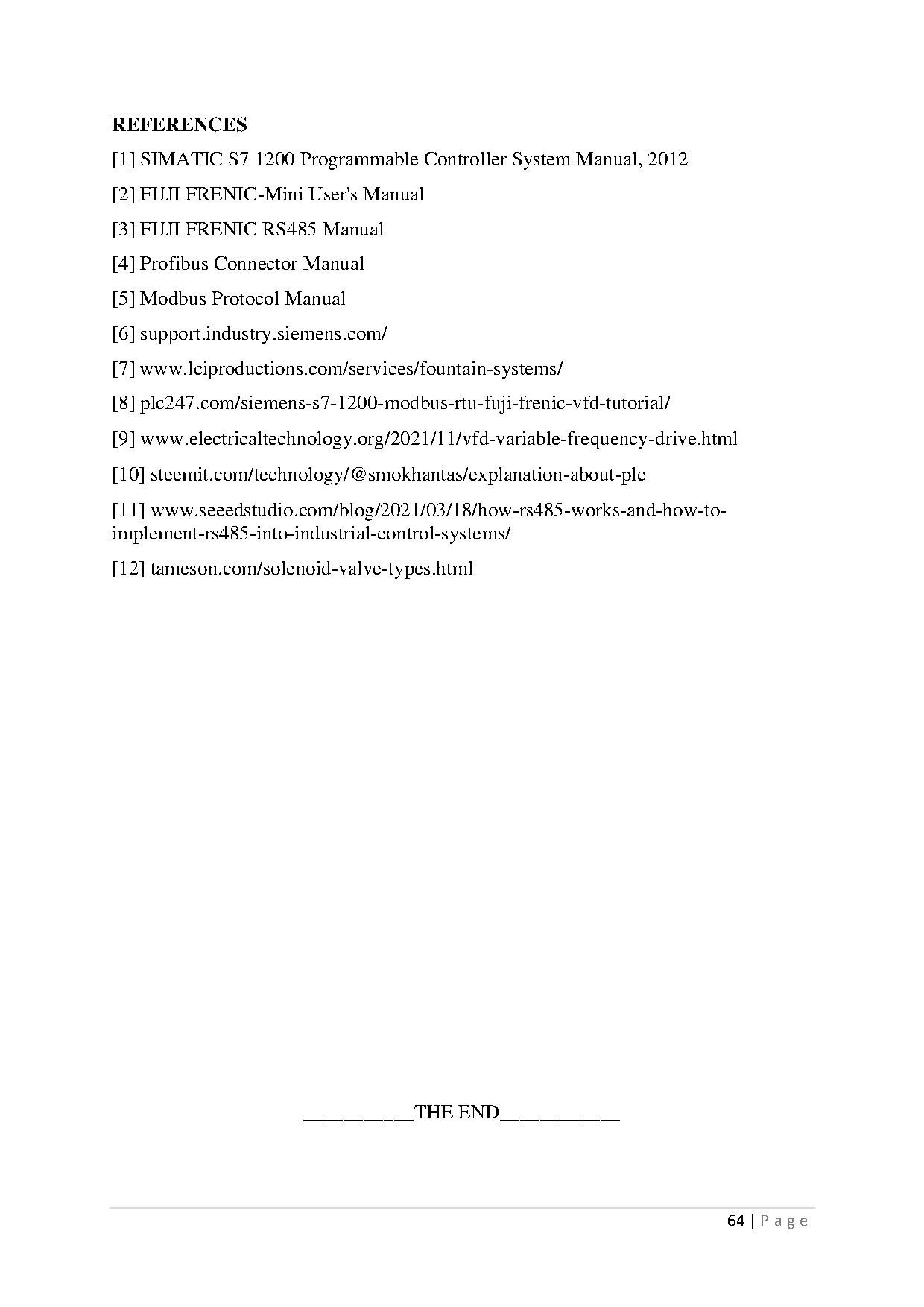

REFERENCES
[1] SIMATIC S7 1200 Programmable Controller System Manual, 2012
[2] FUJI FRENIC-Mini Users Manual
[3] FUJI FRENIC RS485 Manual
[4] Profibus Connector Manual
[5] Modbus Protocol Manual
[6] support.industry.siemens.com/
[7] www.lciproductions.com/services/fountain-systems/
[8] plc247.com/siemens-s7-1200-modbus-rtu-fuji-frenic-vfd-tutorial/
[9] www.electricaltechnology.org/2021/11/vfd-variable-frequency-drive.html
[10] steemit.com/technology/@smokhantas/explanation-about-plc
[11] www.seeedstudio.com/blog/2021/03/18/how-rs485-works-and-how-toimplement-rs485-into-industrial-control-systems/
[12] tameson.com/solenoid-valve-types.html

___________THE END____________
