Đồ án tốt nghiệp - Design of BMS system to monitor dust explosion prevention system

MINISTRY OF EDUCATION AND TRAINING
HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY OF INTERNATIONAL EDUCATION



GRADUATION THESIS

DESIGN OF BMS SYSTEM TO MONITOR DUST
EXPLOSION PREVENTION SYSTEM

Student: DO THANH TUNG

Student ID: 21142487

Student: LUONG NGUYEN QUYNH GIA

Student ID: 20142014

Major: ELECTRICAL AND ELECTRONICS ENGINEERING
SUPERVISOR: LE TRONG NGHIA, Ph.D

Ho Chi Minh city, July 2025

MINISTRY OF EDUCATION AND TRAINING
HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY OF INTERNATIONAL EDUCATION



GRADUATION THESIS

DESIGN OF BMS SYSTEM TO MONITOR DUST
EXPLOSION PREVENTION SYSTEM

Student: DO THANH TUNG

Student ID: 21142487

Student: LUONG NGUYEN QUYNH GIA

Student ID: 20142014

Major: ELECTRICAL AND ELECTRONICS ENGINEERING
SUPERVISOR: LE TRONG NGHIA, Ph.D

Ho Chi Minh city, July 2025

Graduation Thesis

Le Trong Nghia, Ph.D

ACKNOWLEDGEMENTS
We would like to express our sincere gratitude to all individuals who provided
assistance and guidance during the process of finalizing this report. This project could
not have been brought to fruition without their invaluable support and encouragement.
We are especially grateful to Professor Le Trong Nghia, who provided
continuous guidance, insightful feedback, and expertise that greatly enhanced the
quality of this report. His commitment and determination to foster learning have been
truly inspiring.
Finally, a heartfelt appreciation goes to my peers and classmates for their
encouragement, collaboration, and thoughtful discussions that contributed to refining
various aspects of this project. This report is the result of collaborative efforts, and we
are genuinely thankful for everyone who contributed to its successful completion.

Do Thanh Tung
- 21142487
Luong Nguyen Quynh Gia - 20142014

i

Graduation Thesis

Le Trong Nghia, Ph.D

TABLE OF CONTENTS
ACKNOWLEDGEMENTS .......................................................................................i
TABLE OF CONTENTS ......................................................................................... ii
TABLE OF FIGURES..............................................................................................iv
LIST OF TABLE .................................................................................................... vii
LIST OF ABBREVIATIONS ............................................................................... viii
CHAPTER 1: INTRODUCTION ..........
...

...
munication

RS485, Modbus RTU

Table AP.C.1: Specifications of iG5A Inverter
Terminal Wiring:
Control terminal wiring:

Figure AP.C.2: iG5A Inverter control terminal wiring

Do Thanh Tung
- 21142487
Luong Nguyen Quynh Gia - 20142014

62

Graduation Thesis

Le Trong Nghia, Ph.D

Power terminal wiring:

Figure AP.C.3: iG5A Inverter power terminal wiring
Appendix D: ADELINO pump model AJS37FT

Figure AP.D.1: ADELINO pump model AJS37FT
Features:
The pump operates with high efficiency and utilizes ECM (Electronically
Commutated Motor) technology to modify the flow rate while conserving energy, all
without compromising performance.
Do Thanh Tung
- 21142487
Luong Nguyen Quynh Gia - 20142014

63

Graduation Thesis

Le Trong Nghia, Ph.D

The casing, constructed from iron, offers excellent durability. The pump
shaft is made of 304 stainless steels, which provides strong resistance to corrosion
and enhances overall longevity.
Technical parameters:
Maximum flow

63 L/min

Voltage and current

3phase/380V/50Hz 1.0A

Max head

30m

Suction head

7m

Power

0.55kW

Protection

IP 44

Speed

2850 rpm

Table AP.D.1: Technical specifications of ADENILO pump
Appendix E: Danfoss KP2 Pressure Switch.

Figure AP.E.1: Danfoss KP2 Pressure Switch

Do Thanh Tung
- 21142487
Luong Nguyen Quynh Gia - 20142014

64

Graduation Thesis

Le Trong Nghia, Ph.D

Features:
Pressure switches are utilized to sense variations in pressure within liquids or
compressed gas substances. Set points may be established at two distinct levels to
either activate or deactivate the switch.
Protects equipment from harm when pressure levels are excessively high or
low, thereby guaranteeing safety for both the system and individuals.

Figure AP.E.2: Pressure switch contact
Contains two contacts: 1-4: NO (normally open) and 1-2: NC (normally
closed).
Upon reaching the limit, the contacts will their condition and respond.
Technical parameters:
Operating temperature

- 40oC to 65oC (80oC for max 2 hours)

Ambient temperature

- 50 to 100oC
AC1=16 A, 400 V

Operating voltage and current

AC1.5=10 A, 400 V
AC3=16 A, 400 V
DC13= 12W, 220V

Pressure change Max
Do Thanh Tung
- 21142487
Luong Nguyen Quynh Gia - 20142014

Max: 1.5 bar min 0.4 bar
65

Graduation Thesis

Le Trong Nghia, Ph.D

Normal: -0.2 to 5 bar
Operating pressure Normal
Max: 17 bar

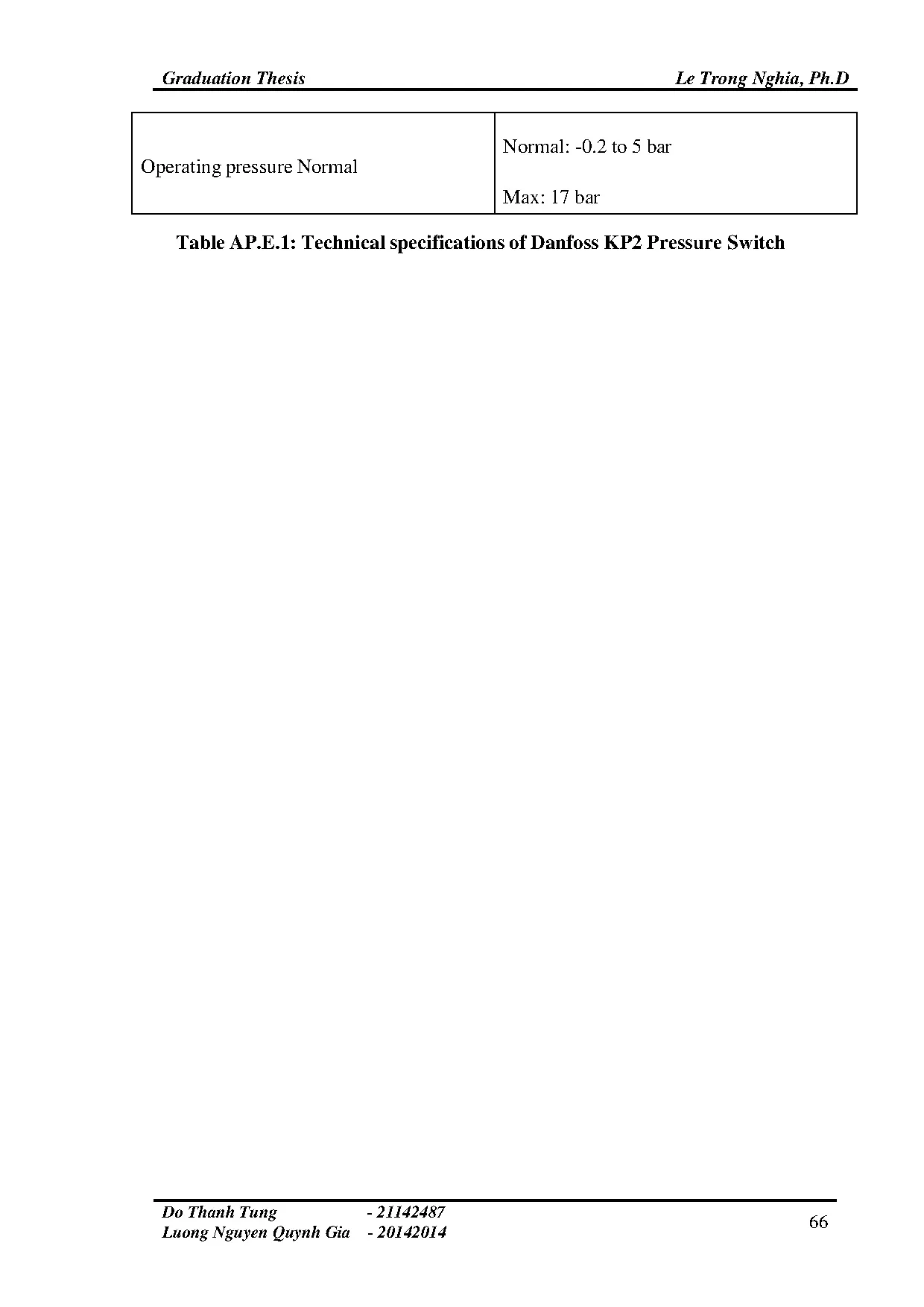

Table AP.E.1: Technical specifications of Danfoss KP2 Pressure Switch

Do Thanh Tung
- 21142487
Luong Nguyen Quynh Gia - 20142014

66
