Figure 6.1 Illustration System

6.4. PRACTICAL EXAMPLE OF INTEGRATION
There are two main ways to use PME for monitoring power quality and energy
consumption in a factory:
 Dispatches real-time overcurrent alarms to SCADA for a defective motor to be
tripped out.
 Shares data on energy consumption on a daily basis with the ERP software, for
cost-accounting functions.
 Informs the BMS to shed load for HVAC during peak tariffs.
By combining these systems, the factory is able to achieve:
 Fewer breakdowns.
 Improved energy efficiency.
 More cost control and sustainability tracking.

66

6.6. FUTURE EXPANSION POTENTIAL


Cloud Integration: Push PME data to cloud (AWS, Azure) for advanced analytics and
mobile access, as a REST API.



Machine Learning – PME data can be supplied to predictive models to identify
anomalies or even energy future trends.



Green

Building

Certification:

Integrated

systems

aid

in

LEED/BREEAM

documentation and compliance.


Micro-Grid Management: Smart campuses or industrial parks can utilize PME for
integration with solar, battery storage and energy trading.

67

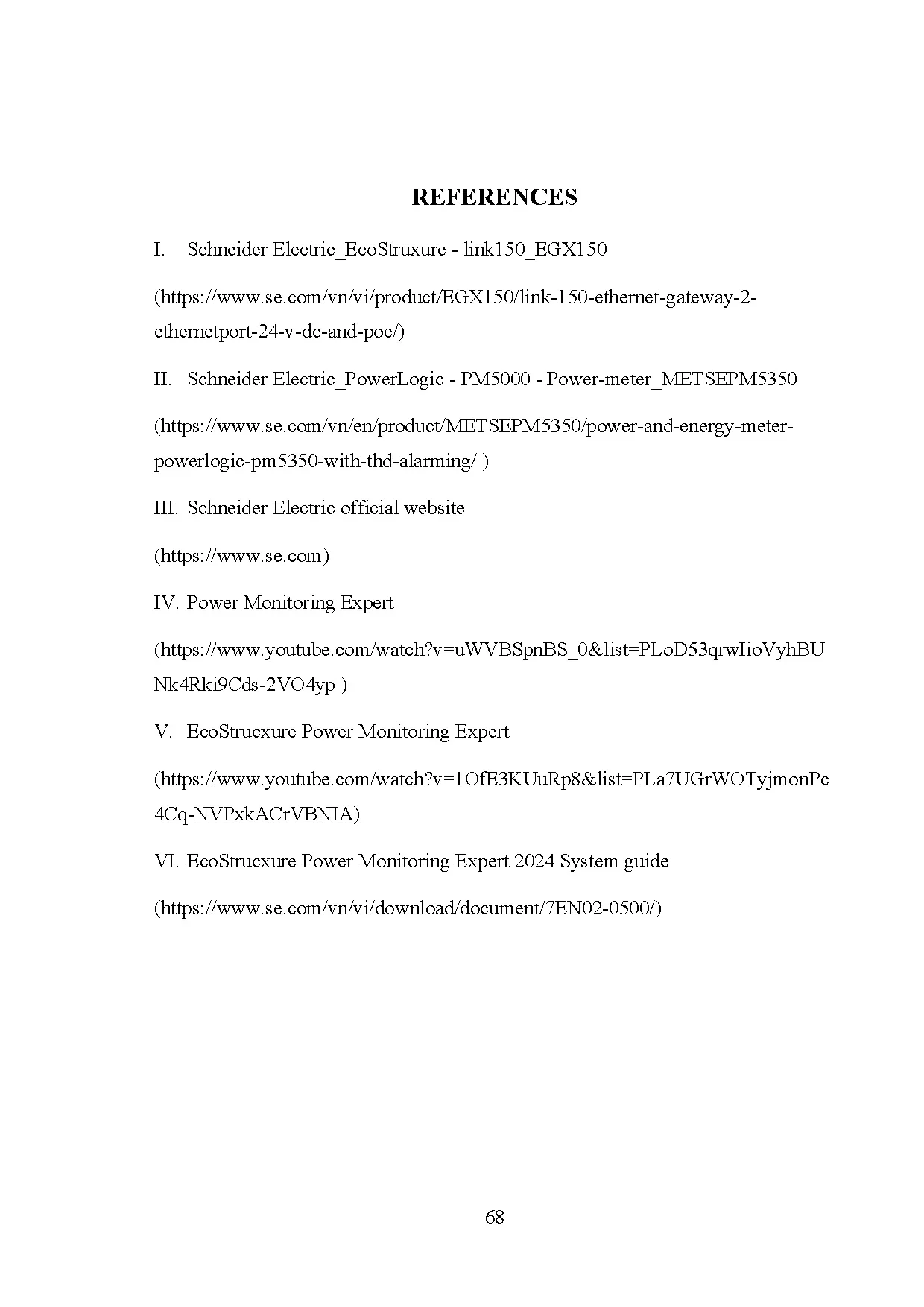

REFERENCES
I.

Schneider Electric_EcoStruxure - link150_EGX150

(https://www.se.com/vn/vi/product/EGX150/link-150-ethernet-gateway-2ethernetport-24-v-dc-and-poe/)
II. Schneider Electric_PowerLogic - PM5000 - Power-meter_METSEPM5350
(https://www.se.com/vn/en/product/METSEPM5350/power-and-energy-meterpowerlogic-pm5350-with-thd-alarming/ )
III. Schneider Electric official website
(https://www.se.com)
IV. Power Monitoring Expert
(https://www.youtube.com/watch?v=uWVBSpnBS_0&amplist=PLoD53qrwIioVyhBU
Nk4Rki9Cds-2VO4yp )
V. EcoStrucxure Power Monitoring Expert
(https://www.youtube.com/watch?v=1OfE3KUuRp8&amplist=PLa7UGrWOTyjmonPc
4Cq-NVPxkACrVBNIA)
VI. EcoStrucxure Power Monitoring Expert 2024 System guide
(https://www.se.com/vn/vi/download/document/7EN02-0500/)
