Đồ án tốt nghiệp - Research on the drivetrain system of the BMW I8 plug-in hybrid

HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY OF INTERNATIONAL EDUCATION

GRADUATION PROJECT

RESEARCH ON THE DRIVETRAIN SYSTEM OF
THE BMW I8 PLUG-IN HYBRID

PHẠM TRƯỜNG AN
Student ID: 20145398
BÙI QUỐC VINH
Student ID: 20145446
Major: AUTOMOTIVE ENGINEERING
Supervisor: DƯƠNG TUẤN TÙNG, PhD.

Ho Chi Minh City, January 2024

THE SOCIALIST REPUBLIC OF VIETNAM

Independence – Freedom– Happiness


Ho Chi Minh City, January 3rd, 2024

GRADUATION PROJECT ASSIGNMENT
Student name: PHẠM TRƯỜNG AN

Student ID: 20145398

Student name: BÙI QUỐC VINH

Student ID: 20145446

Major: AUTOMOTIVE ENGINEERING

Class: 20145CLA2 – 20145CLA4

Supervisor: DƯƠNG TUẤN TÙNG, Ph.D

Phone number: 0914805623

Date of assignment: 15/12/2024

Date of submission: 23/12/2024

1. Project title: RESEARCH ON THE DRIVETRAIN SYSTEM OF THE BMW I8 PLUG-IN
HYBRID.
2. Initial materials provided by supervisor: Science journals relative with topic.
3. Content of the project: _________________________________________________
4. Final product: ________________________________________________________
CHAIR OF THE PROGRAM

SUPERVISOR

(Sign with full name)

(Sign with full name)

THE SOCIALIST REPUBLIC OF VIETNAM

Independence – Freedom– Happiness


EVALUATION SHEET OF
DEFENSE COMMITTEE MEMBER
Student name: PHẠM TRƯỜNG AN

Student ID: 20145398

Student name: BÙI QUỐC VINH

Student ID: 20145446

Major: AUTOMOTIVE ENGINEERING
Project title: RESEARCH ON THE DRIVETRAIN SYSTEM OF THE BMW I8 PLUG-IN
HYBRID.
Name of Defense Committee Member:
...................................................................................................................................................
EVALUATION
1. Content and workload of the project
.................................................................................................................................................
.................................................................................................................................................
.................................................................................................................................................
.................................................................................................................................................
2. Strengths:
..................................................................................................................................
...

...
ert screws and tighten.
 Tightening torque:
Thread

Torque

M12x75

66 Nm

M8x40

19 Nm

132

 screws and tighten.
 Tightening torque:
Thread

Torque

M12x75

66 Nm

M8x40

19 Nm

 Crank engine with special tool 11 6
480 at vibration damper in direction
of rotation.
 Screw 6 nuts (1) on torque converter.
 Tightening torque: 56 Nm

 Release the motor removal device (1)
from the transmission.

Required follow-up work:
 Install sound insulation
 Install engine with transmission in the rear axle module

133

Chapter 6: CONCLUSION AND RECOMMENDATIONS
After a period of working on the project under the dedicated guidance of Dr. Duong
Tuan Tung, along with our efforts in researching and studying the topic “Research on
the Drivetrain System of the BMW i8 plug-in hybrid,” our team has accomplished the
following tasks:
‒ Gained an overall understanding of hybrid technology and the development trends
of hybrid vehicles.
‒ Studied the structure and operating principles of the drivetrain system, particularly
the power flow and its operation methods.
‒ Summarized key control systems used in the vehicle.
‒ Learned about diagnostic procedures, repair processes, and important
considerations when repairing hybrid vehicles.
In terms of the basic content, our team has researched and summarized several key
aspects as initially planned. However, there are still some limitations and incomplete
areas within the project. Therefore, we look forward to receiving feedback from our
lecturers to improve the project further and identify areas that need to be addressed.
One of the limitations of our project is the lack of research on the control diagram of
the valve body. We hope that future groups working on this topic will overcome these
shortcomings and develop the project more comprehensively and effectively.

134

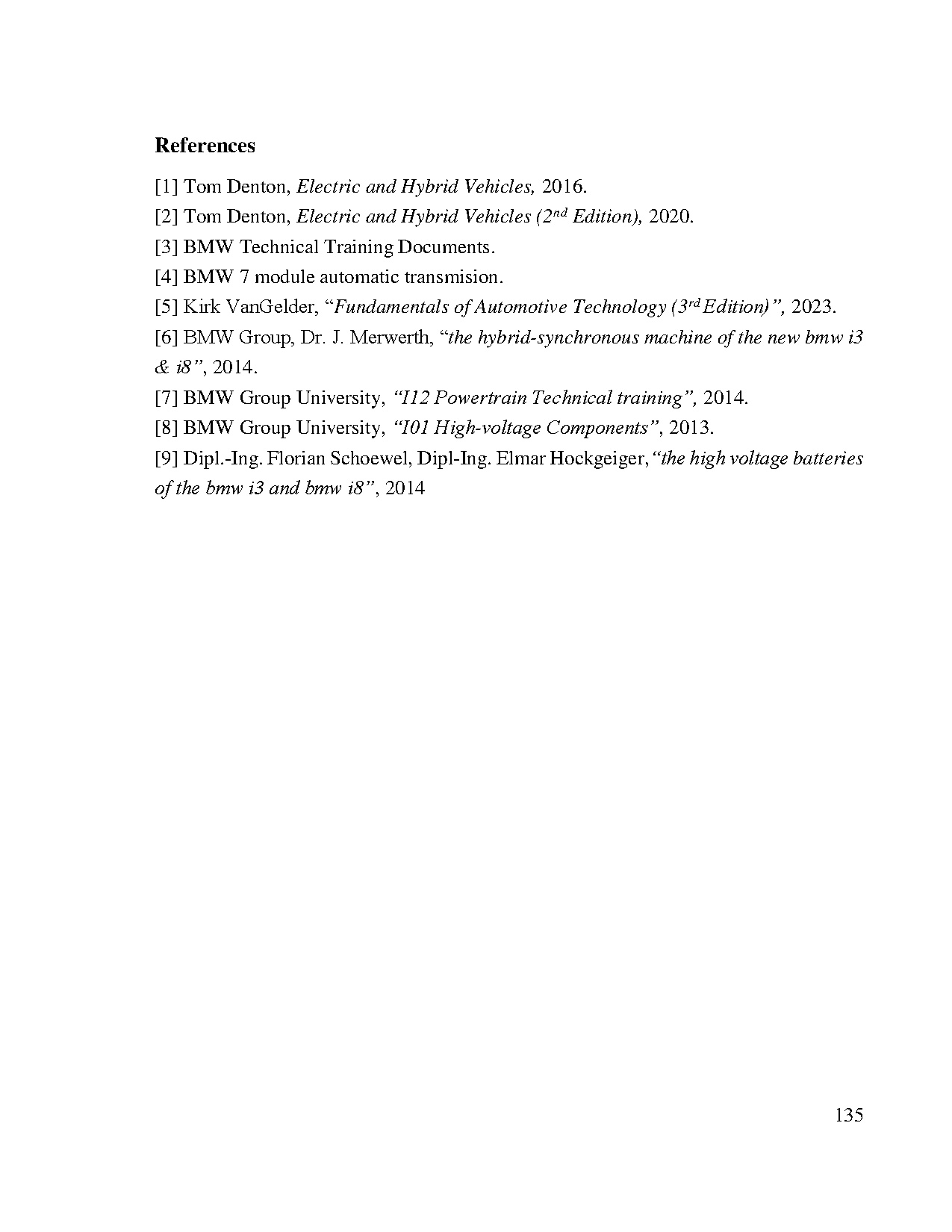

References
[1] Tom Denton, Electric and Hybrid Vehicles, 2016.
[2] Tom Denton, Electric and Hybrid Vehicles (2nd Edition), 2020.
[3] BMW Technical Training Documents.
[4] BMW 7 module automatic transmision.
[5] Kirk VanGelder, “Fundamentals of Automotive Technology (3rd Edition)”, 2023.
[6] BMW Group, Dr. J. Merwerth, “the hybrid-synchronous machine of the new bmw i3
&amp i8”, 2014.
[7] BMW Group University, “I12 Powertrain Technical training”, 2014.
[8] BMW Group University, “I01 High-voltage Components”, 2013.
[9] Dipl.-Ing. Florian Schoewel, Dipl-Ing. Elmar Hockgeiger,“the high voltage batteries
of the bmw i3 and bmw i8”, 2014
