HO CHI MINH UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY FOR HIGH-QUALITY TRAINING


GRADUATION THESIS PROJECT

FABRICATION OF DAMPING MODELS USING
MAGNETIC FLUIDS (FERROFLUIDS)
APPLICATION FOR TURNING TOOL

NGUYEN PHUC NAM

Student ID: 19143061

LE MINH TRI

Student ID: 19143023

PHAM THIEN QUANG

Student ID: 19143068

Major: MACHINE MANUFACTURING TECHNOLOGY
Advisor: ME. LE BA TAN

Ho Chi Minh City, July 2023

HO CHI MINH UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY FOR HIGH-QUALITY TRAINING


GRADUATION THESIS PROJECT

FABRICATION OF DAMPING MODELS USING
MAGNETIC FLUIDS (FERROFLUIDS)
APPLICATION FOR TURNING TOOL

NGUYEN PHUC NAM

Student ID: 19143061

LE MINH TRI

Student ID: 19143023

PHAM THIEN QUANG

Student ID: 19143068

Major: MACHINE MANUFACTURING TECHNOLOGY
Advisor: ME. LE BA TAN

Ho Chi Minh City, July 2023

UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY FOR HIGH QUALITY TRAINING

SOCIALIST REPUBLIC OF VIET NAM
Independence – Liberty – Happiness

MISSION OF THE GRADUATION THESIS
2nd Semester/ academic year: 2022-2023
Advisor: ME. Le Ba Tan
Author’s name: Nguyen Phuc Nam................ ID: 19143061

Phone number: 0985756517

Author’s name: Le Minh Tri ......................... ID: 19143023

Phone number: 0966144300

Author’s name: Pham Thien Quang ............... ID: 19143068

Phone number: 0921491179

1. Thesis:
- Thesis ID:
- Thesis title:

22223DT346 ...............................
Fabrication of damping models using magnetic fluids (ferrofluids)Application for turning tool. ......................................................................

2. Initial data, documents, and sources:
- Data on damping technology.
- Parameters about turning tool holder: S20R-MTJNR16, .
- Parameters of cutting mode when turning.
3. The main content of the thesis:
- Research and design a model to reduce the damper damping of the creeping fluid for
turning tool.

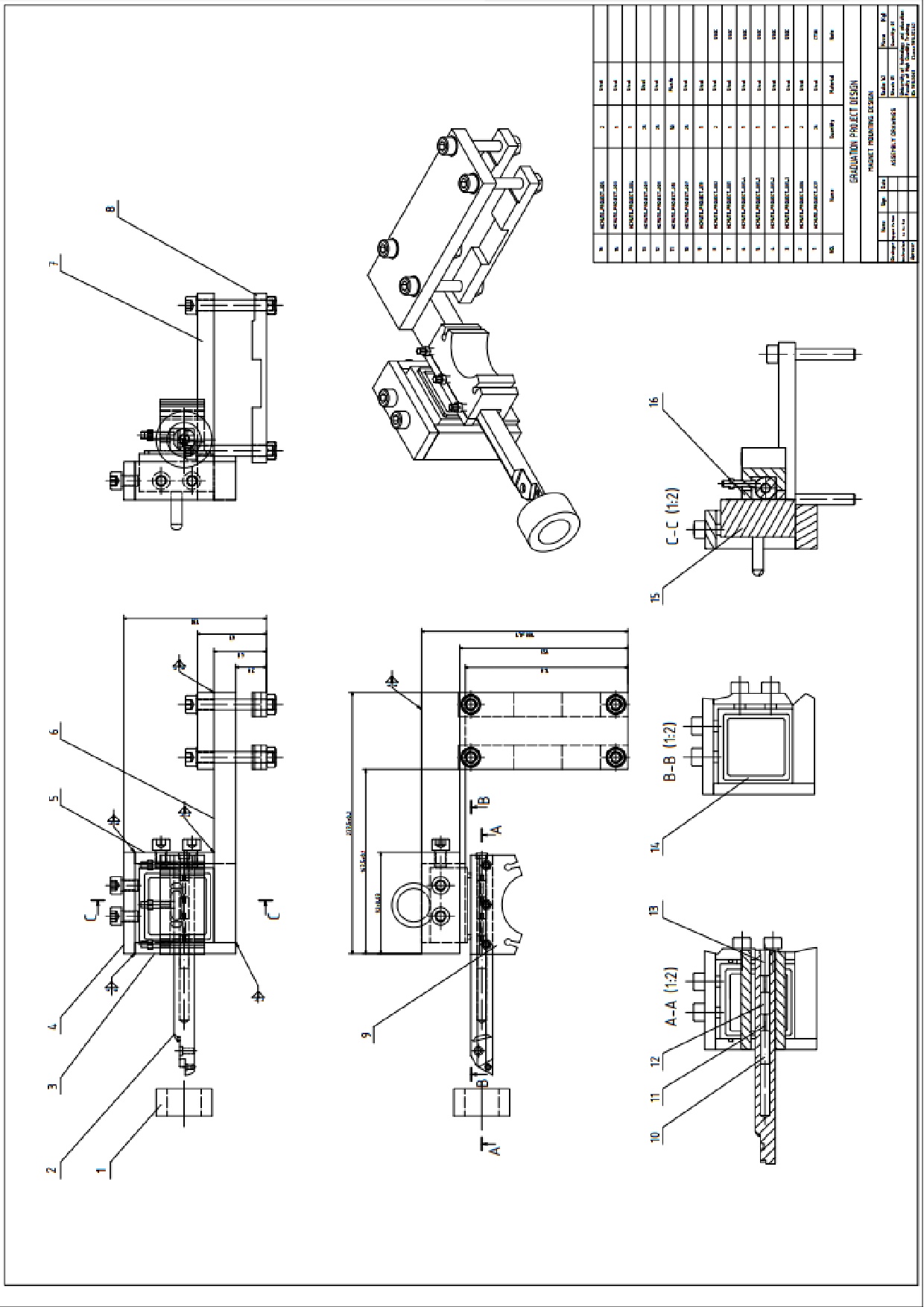

- Design and manufacture jigs for testing during turning.
- Using ANSYS software to conduct stress and displacement simulation of the model
mounted on the table.
-Design and manufacture 25 console beams to experiment for the vibration measurement
process and to the best console to conduct turning experiment with creeping fluids.
- Measure vibrations from the following cases: original shank, shank with hole without
console, shank with console in 3 air environments, oil and water and the console handle
in a ferrofluid environment under the influence of a
...

...
the use of
ferrofluid in turning tool when turning to reduce vibrations under the effect of vibration
frequency during machining with low standards, easy to do and easy to use.
In the end, the process of implementing the project has achieved the following specific
products:
- An application model is given for turning tool in terms of vibration damping when
turning when using ferrofluid.
- Accurate measurements of velocity, acceleration, and displacement values of
ferrofluid and original turning tool shanks.
- Workpieces have lower roughness values than the original turning tool and
determine certain magnet spacing and ferrofluid concentrations.
6.2 Further research direction.
- Optimized damping pattern.
- Study the tool direction and cutting trajectory to achieve the best surface finish.
- Study of damping on other materials (Aluminium, ...)
- Learn more about the damper technology of the turning tool.

136

REFERENCES
[1] N. Kishi, O. Nakano, H. Mikami, K.G. Matsuoka and N. Sugata, “Field test on shockabsorbing effect of three-layered absorbing system”, https://bom.so/I3mU9H
[2] G. Sathyapriya, U. Natarajan, B. Sureshkumar, G. Navaneethakrishman, R.
Palanisamy, Mohit Bajaj, Naveen Kumar Sharma and Kitmo, “Quality and Tool Stability
Improvement in Turning Operation Using Plastic Compliant Damper”, Journal of
Nanomaterials, pp. 8, 2022.
[3] Dynamox, “DynaLogger TcAs” https://content.dynamox.net/wpcontent/uploads/2023/02/en-dynalogger-tcas.pdf (accessed July 24, 2023).
[4] Dynamox, “The Peak, Peak to Peak and RMS values in vibration analysis”,
https://dynamox.net/en/blog/the-peak-peak-to-peak-and-rms-values-in-vibration-analysis
(accessed July 24, 2023).
[5] Dymamox, “Vibration analysis metrics: Kurtosis and Skewness”
https://dynamox.net/en/blog/vibration-analysis-metrics-kurtosis-and-skewness (accessed
July 24, 2023).
[6] A.N.M Khalil, M.A.M Ali, A.I Azmi, “Effect of Al2O3 nanolubricant with SDBS on
tool wear during turning process al ANSI 1050 with minimal quanlity lubricant”,
MIMEC2015, University Malaysia Perlis, Malaysia, 2015.
[7] Dassteel, “Thép tấm” http://www.thepdonga.vn/thep-tam/thep-tam-aisi-1050.html
(accessed July 24, 2023).
[8] MatWeb, “AISI 1050 Steel, as rolled” https://bom.so/eZLtL3 (accessed July 24,
2023).
[9] Exapro, “Weiler Praktikant 160B” https://www.exapro.com/sp/weilerpraktikant160b-11700 (accessed July 24, 2023).
[10] Mitutoyo SJ-201 catalogue.
[11] https://dyp.dynamox.solutions/signin/session-expired

137
