HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY AND EDUCATION
FACULTY OF INTERNATIONAL EDUCATION

GRADUATION THESIS

Design and manufacture of an automatic PET bottle supplying
machine for water bottling production lines.

Advisor: M.E TƯỞNG PHƯỚC THỌ
Student: ĐÀM HOÀNG THÔNG
HUỲNH PHẠM DUY TRÍ
Major: MECHATRONICS
Course: 2019-2023

Ho Chi Minh City, March 2024

19146077
19146133

THE SOCIALIST REPUBLIC OF VIETNAM
Independence – Freedom– Happiness

-Ho Chi Minh City, March …, 2024

GRADUATION PROJECT ASSIGNMENT
Student name: Đàm Hoàng Thông

Student ID: 19146077

Student name: Huỳnh Phạm Duy Trí

Student ID: 19146133

Major: Mechatronics

Class: 19146CLA

Advisor: M.E Tưởng Phước Thọ

Phone number:

Date of assignment: 05/09/2023
Date of submission: …/…/2024.
1. Project title: Design and manufacture of an automatic PET bottle supplying machine for water
bottling production lines.
2. Applying the knowledge acquired through education along with the insights gained through group
research and study, we have surveyed, researched, and constructed an automatic PET bottle
machine. Through the process of real-world observation and our own experiences in design and
machine processing, the automatic bottle machine facilitates easy bottle arrangement and achieves
high efficiency, making it user-friendly.
3. Content of the project:
- Calculation and design proposal
- ing motor and detail
- Electrical circuit design and 3D modeling
- Manufacture product
- Testing
4. Final product:
- An automatic PET bottle supplying machine for water bottling production lines has an efficiency
of about 1500 bottles per hour.
CHAIR OF THE PROGRAM

ADVISOR

(Sign with full name)

(Sign with full name)

THE SOCIALIST REPUBLIC OF VIETNAM
Independence – Freedom– Happiness

-Ho Chi Minh City, March … , 2024

ADVISOR’S EVALUATION SHEET
Student name: Đàm Hoàng Thông

Student ID: 19146077

Student name: Huỳnh Phạm Duy Trí

Student ID: 19146133

Major: Mechatronics
Project tittle: Design and manufacture of an automatic PET bottle supplying machine for water
bottling production lines.
Advisor: M.E Tưởng Phước Thọ
EVALUATION
1. Content of the project
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………
2.Strengths
……………………………………………………………………………………………………..
……………………………………………………………………………………………………..
……………………………………………………………………………………………………..
3.Weekness
……………………………………………………………………………………………………..
………………………………
...

...
exit.
Case 2: Running the machine for 2 minutes
Table 5. 3: The result of case 2
Number

The number of
bottles arranged
into the filling
machine

The number of
bottles get stuck
when moving

1

46

0

2

44

0

3

40

0

4

42

0

5

45

0
94

Number

The number of The number of
bottles
arranged bottles get stuck
into the filling when moving
machine

6

47

0

7

38

1

8

41

0

9

48

0

10

45

0

Figure 5. 8: The result of case 2
The same problem at Figure 5.7 happened in the test 7 made decrease efficient of
machine .
Case 3: Running the machine for 3 minutes

95

Table 5. 4: The result of case 3
Number

The number of
bottles arranged
into the filling
machine

The number of
bottles get stuck
when moving

1

58

0

2

54

1

3

62

0

4

64

0

5

61

0

6

57

0

7

68

0

8

60

0

9

67

0

10

63

0

Figure 5. 9: The result of case 3
96

Comments:
Overall, the bottle arranging machine, with an average of 20 bottles filled per minute,
equivalent to 1200 bottles per hour, gain 80% of the instructors specified bottle quantity.
However, in special cases where bottles get stuck, it may slow down the bottling process,
affecting the machines operation.
Our machine is designed specifically for the bottles found in the lab. However, with
some mechanical adjustments, bottles with equivalent shapes such as Aquafina, Lavie,
Number 1, can be used. Nevertheless, these bottles may get stuck at the neck because the
filling machine is designed to fit only the bottles found in the lab.
5.3 Evaluation
Advantages:
• The number of bottles entering the bottling machine is relatively stable and fast.
• The system is simple and easy to use.
Disadvantages
• The bottle storage capacity is small compared to actual needs.
• Each component of the machine is not tightly connected.
• Bottle jamming issues still exist.
5.4 Development
After experiments, mechanical issues and solutions have been clarified. However,
to ensure smooth operation and achieve the set goals, we will replace the DC motors by
DC servos to facilitate adjusting the machines performance with encoder.

97

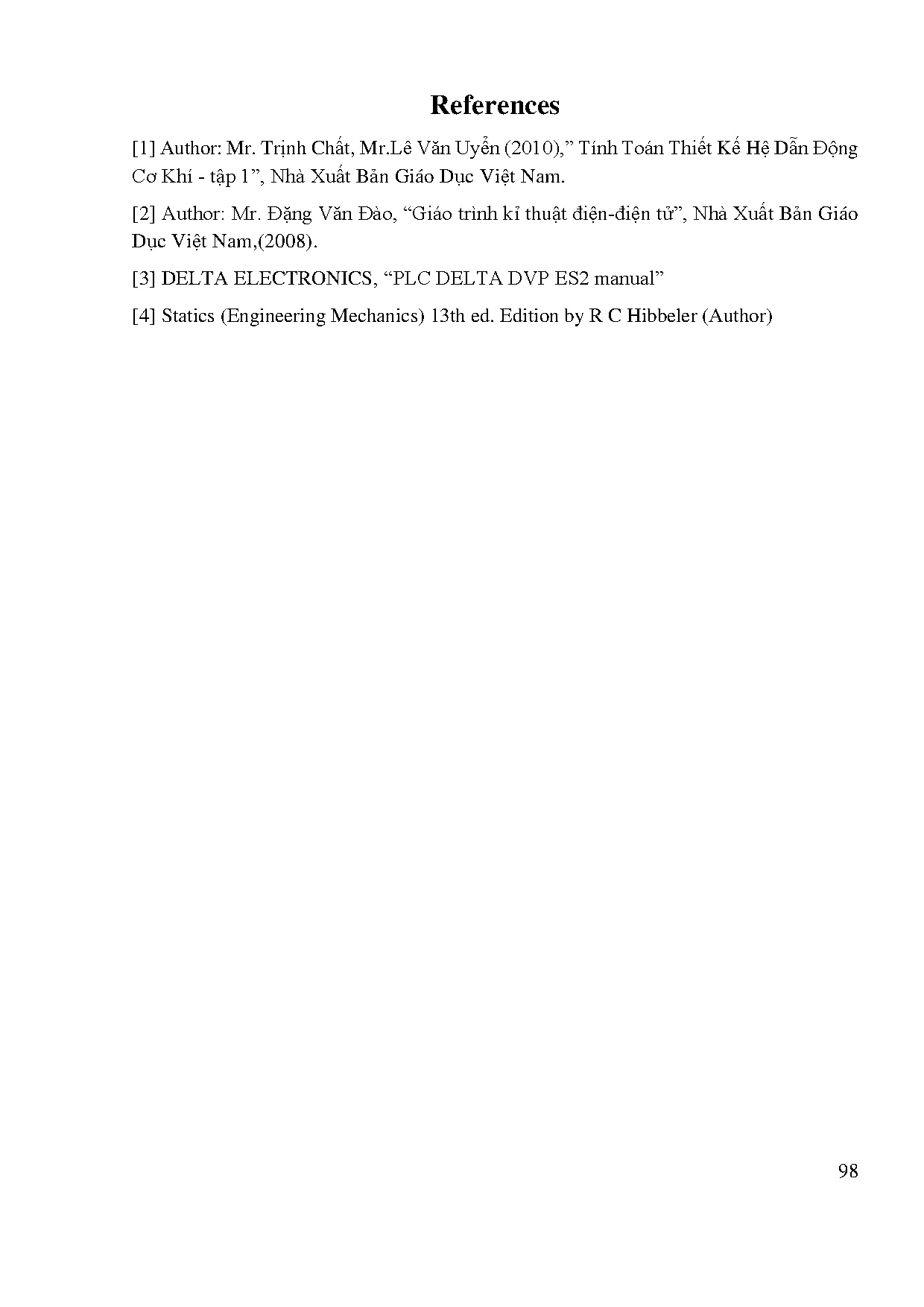

References
[1] Author: Mr. Trịnh Chất, Mr.Lê Văn Uyển (2010),” Tính Toán Thiết Kế Hệ Dẫn Động
Cơ Khí - tập 1”, Nhà Xuất Bản Giáo Dục Việt Nam.
[2] Author: Mr. Đặng Văn Đào, “Giáo trình kỉ thuật điện-điện tử”, Nhà Xuất Bản Giáo
Dục Việt Nam,(2008).
[3] DELTA ELECTRONICS, “PLC DELTA DVP ES2 manual”
[4] Statics (Engineering Mechanics) 13th ed. Edition by R C Hibbeler (Author)
